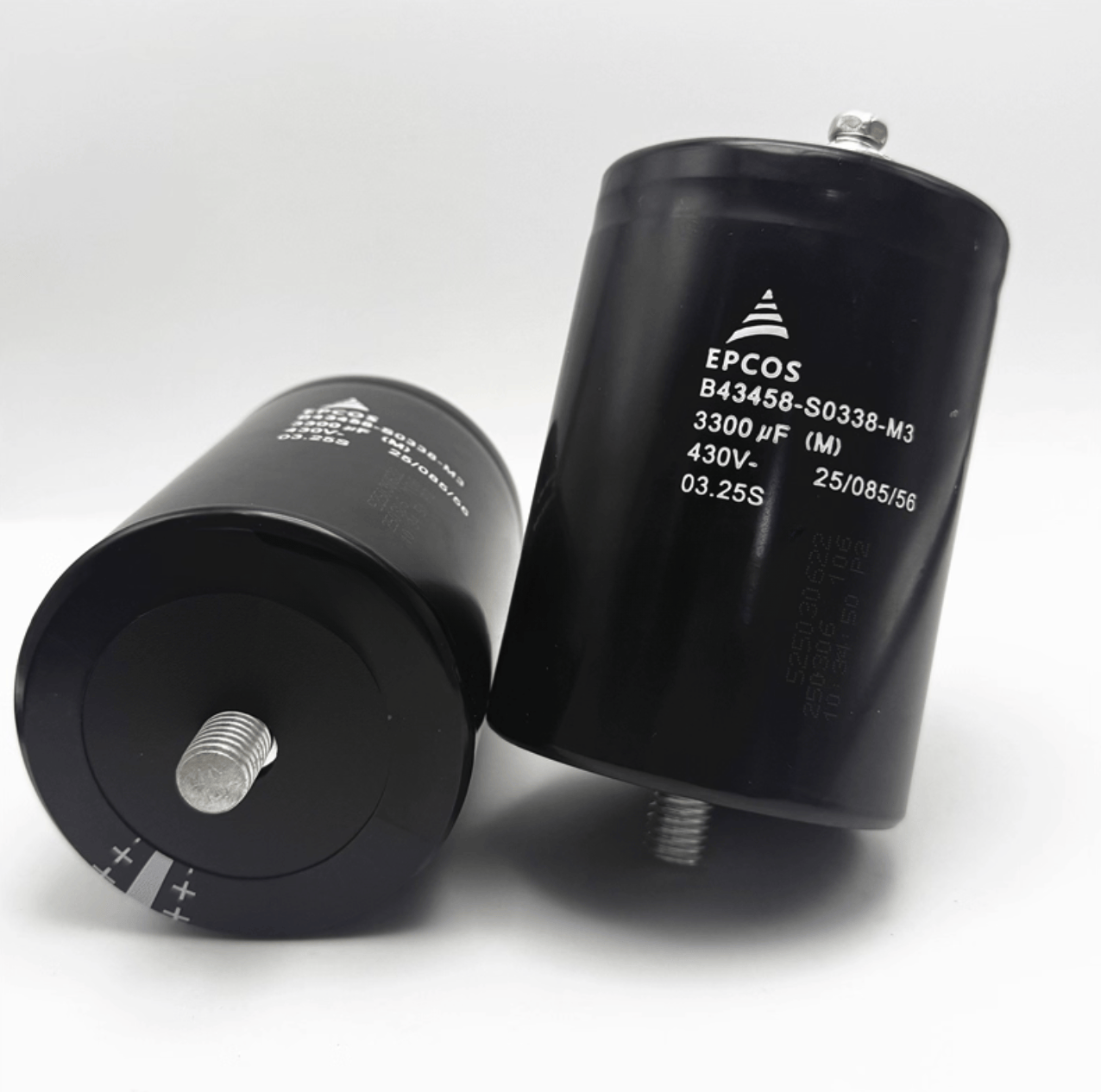

EPCOS B43458-S0338-M3 Capacitor, 430V 3300uF, Snap-In Type
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43458-S0338-M3 is a high-performance, long-life aluminum electrolytic capacitor equipped with screw terminals and a threaded mounting stud. As part of the B43458 series, it is engineered for professional power electronics applications requiring superior ripple current capability and high reliability. The "S" designation indicates a specialized design optimized for rigorous DC-link applications. This capacitor features an all-welded internal construction for low ESR and high mechanical stability, housed in an insulated aluminum case. It is specifically suited for use in industrial frequency converters, solar inverters, uninterruptible power supplies (UPS), and professional power modules.
| Product ID | B43458-S0338-M3 |
| Manufacturer | EPCOS (TDK) |
| Series | B43458 (High Reliability Grade) |
| Rated Capacitance | 3300 µF |
| Rated Voltage (Vr) | 430 V DC |
| Capacitance Tolerance | ±20% (Code M) |
| Terminal Configuration | Screw Terminals (Top) |
| Mounting Style | Threaded Stud Mount (Bottom) |
| Technology | Aluminum Electrolytic |
| Climatic Category | 25/085/56 |
| Lower Category Temperature | -25 °C |
| Upper Category Temperature | +85 °C |
| Design Integrity | Charge-discharge proof; Polar |
| Construction | All-welded internal bonding |
| Case Insulation | PVC Sleeving |
