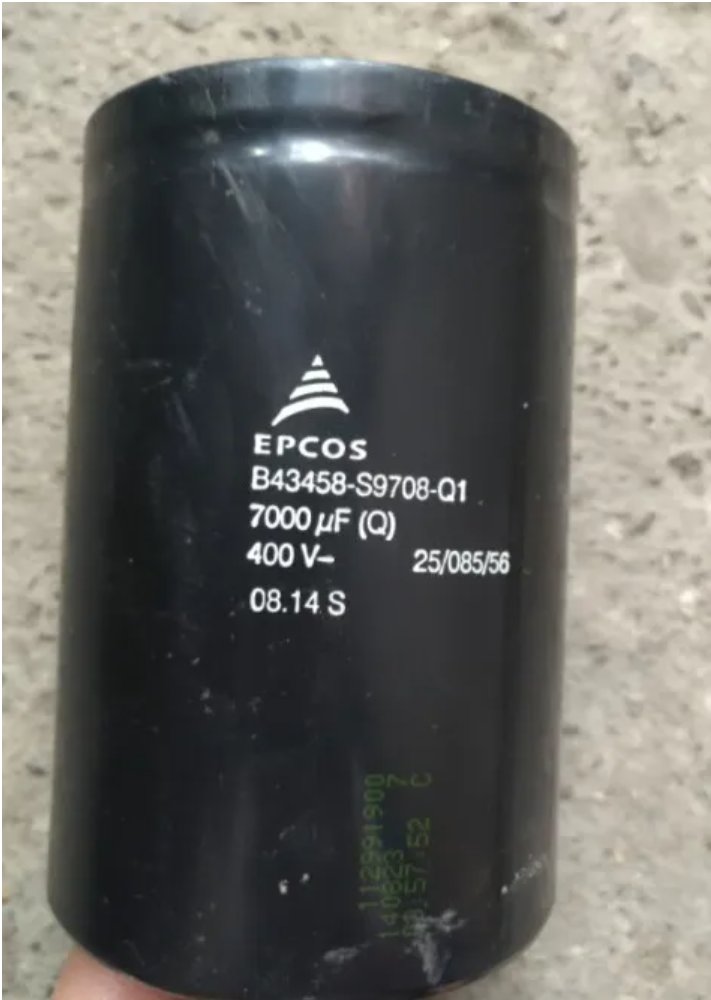

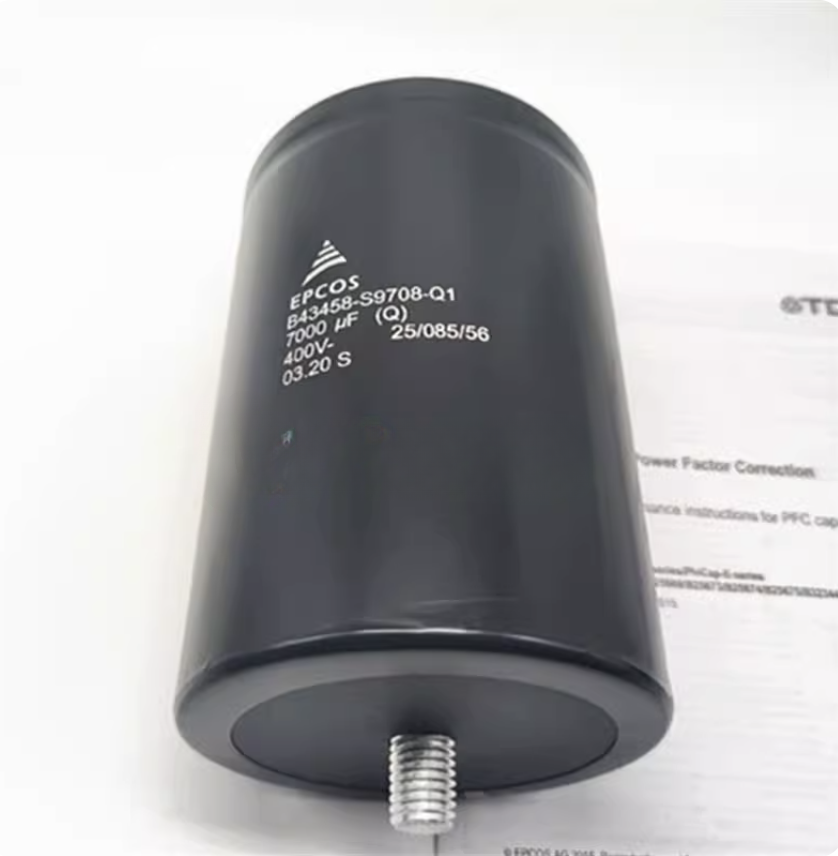

EPCOS B43458-S9708-Q1 B43458 Series Aluminum Electrolytic Capacitor, 7000µF, 400VDC
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43458-S9708-Q1 is a high-performance aluminum electrolytic capacitor from the B43458 series, specifically engineered for professional industrial electronics. This component features screw terminal connections and a threaded mounting stud for secure installation in power converters, UPS systems, and industrial pulse applications. The B43458-S9708-Q1 is characterized by its high ripple current capability and long-term reliability under demanding electrical loads. It features an all-welded construction for low contact resistance and a charge-discharge proof design.
| Product ID | B43458-S9708-Q1 |
| Manufacturer | EPCOS (TDK Electronics) |
| Series | B43458 (High performance) |
| Capacitance | 7000 µF |
| Rated Voltage (Vr) | 400 V DC |
| Tolerance | ±20% (Typical of Series) |
| Termination Type | Screw Terminals |
| Mounting Configuration | Threaded Stud at Base |
| Climatic Category | 25/085/56 (IEC 60068-1) |
| Lower Operating Temp. | -25 °C |
| Upper Operating Temp. | +85 °C |
| Service Life | 12,000 h @ 85 °C |
| Construction | Aluminum case with PVC insulation sleeve, All-welded |
| Electrical Property | Charge-discharge proof, Polarized |
