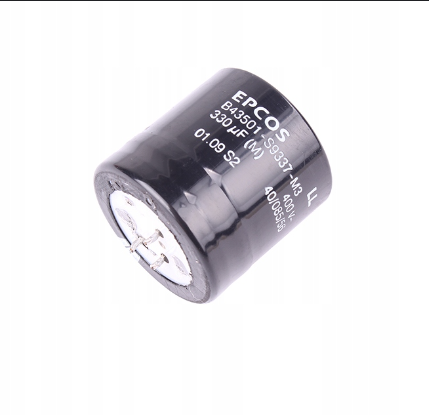

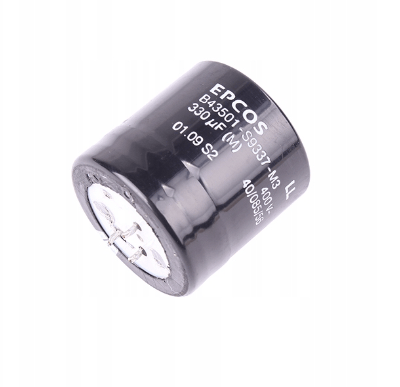

EPCOS B43501-S9337-M3 B43501 Series Snap-in Capacitor, 330µF 400V, 30x45mm
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The EPCOS B43501-S9337-M3 is a long-life, snap-in aluminum electrolytic capacitor from the B43501 series, designed for demanding industrial applications. It features a 330µF capacitance and a 400V DC rated voltage, housed in a compact 30mm x 45mm case. This component is engineered for high ripple current capability, low ESR, and reliable operation in frequency converters, solar inverters, and power supplies.
Key Features
- Long useful life grade, rated for >10,000 hours at 85°C and full rated voltage/ripple current.
- High ripple current capability with low equivalent series resistance (ESR).
- RoHS-compatible construction with charge/discharge-proof, polar design.
- Snap-in solder pins (4.5 mm or 6.3 mm lengths available) for secure PCB mounting.
- Overload protection via a safety vent on the capacitor base.
- Available with PVC insulation, PET insulation, or PVC with an additional PET insulation cap.
| Product ID | B43501-S9337-M3 |
| Series | B43501 |
| Rated Capacitance (CR) | 330 µF |
| Rated Voltage (VR) | 400 V DC |
| Capacitance Tolerance | ±20% |
| Case Dimensions (d x l) | 30 mm x 45 mm |
| Dissipation Factor (tan δ) @ 20°C, 120 Hz | ≤ 0.15 |
| Typical ESR @ 100 Hz, 20°C | 200 mΩ |
| Max. Impedance (Z) @ 10 kHz, 20°C | 330 mΩ |
| Max. Ripple Current (IAC,max) @ 100 Hz, 60°C | 3.92 A |
| Rated Ripple Current (IAC,R) @ 100 Hz, 85°C | 2.00 A |
| Useful Life @ 85°C, VR, IAC,R | > 10,000 h |
| Operating Temperature Range | -40°C to +85°C |
| Terminal Type | Snap-in |
