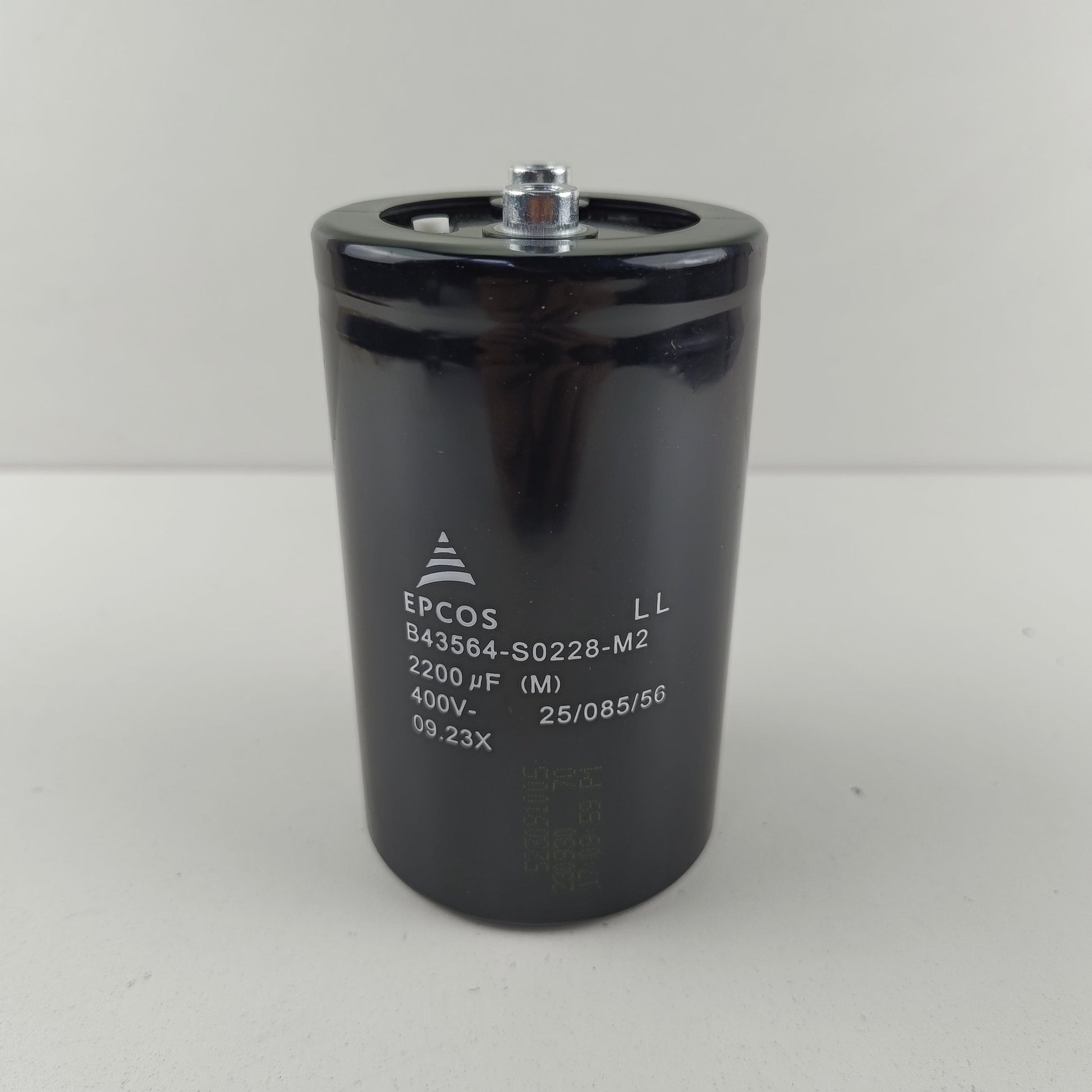

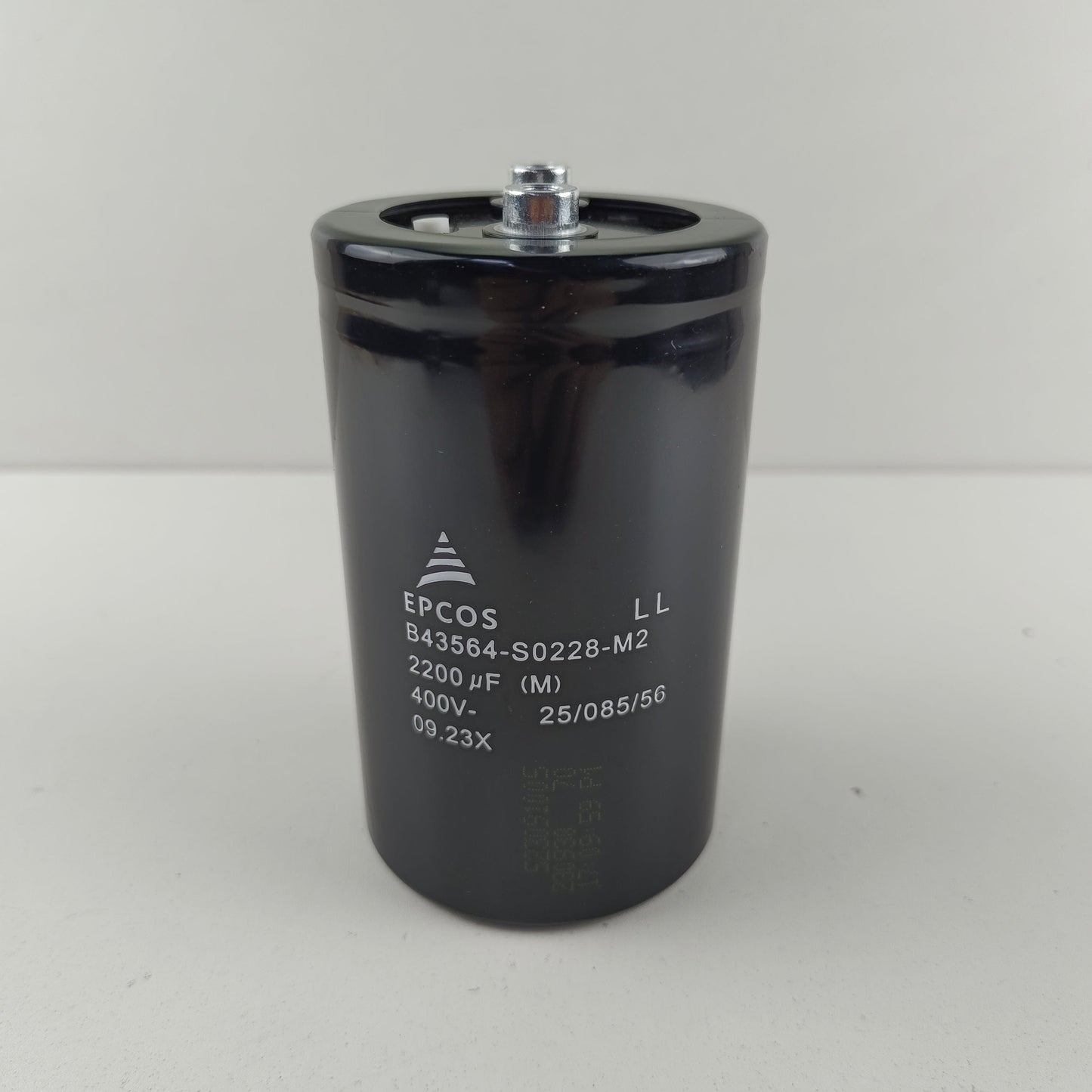

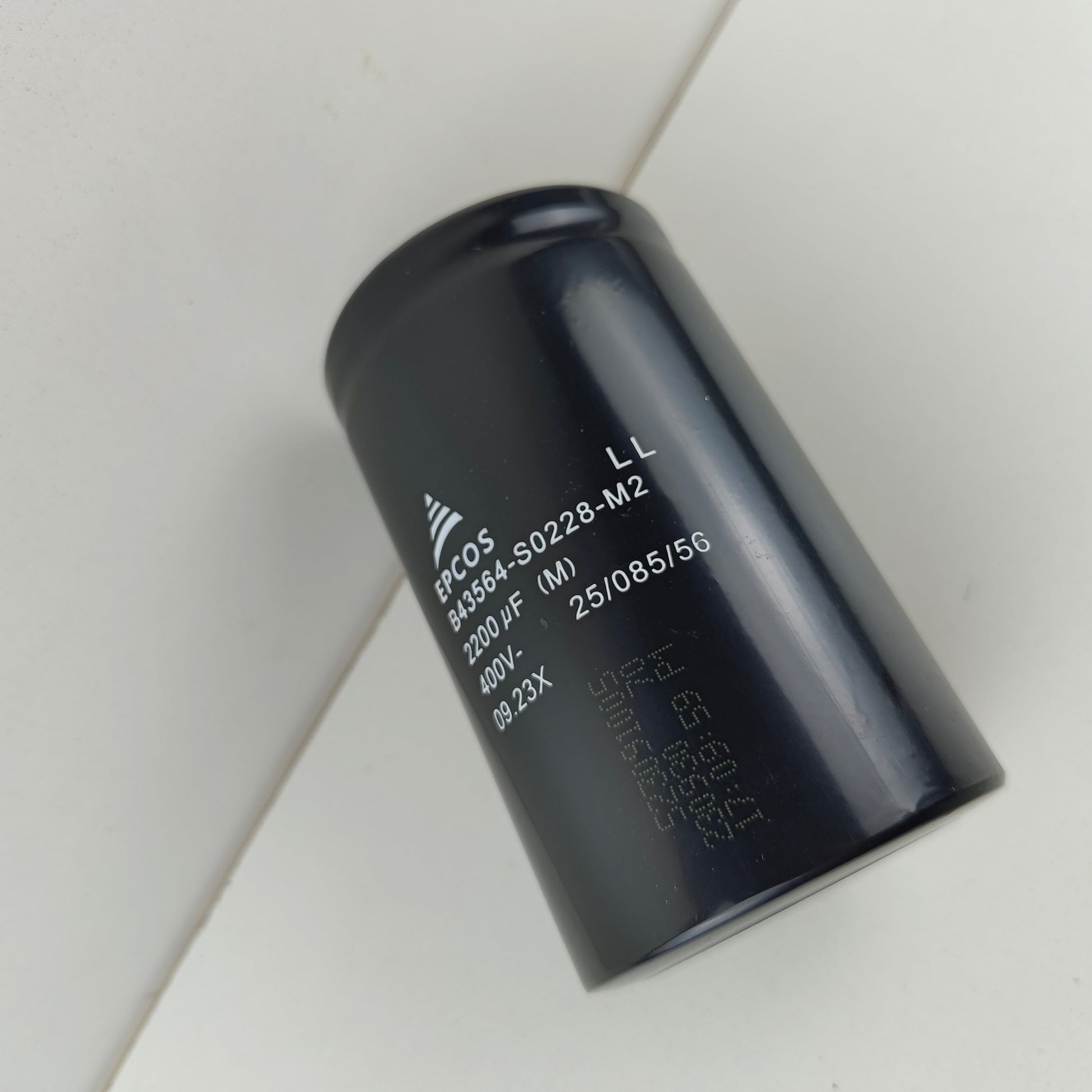

EPCOS B43564-S0228-M2 / B43564S0228M2 B43564 Series Aluminum Electrolytic Capacitor, 2200 µF, 400V DC
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43564-S0228-M2 is a high-performance, long-life (LL) aluminum electrolytic capacitor designed for demanding industrial power electronics. Featuring screw terminal connections and a robust cylindrical design, this component is engineered for high ripple current capability and exceptional reliability in frequency converters, solar inverters, and uninterruptible power supplies (UPS).
| Product ID (MPN) | B43564-S0228-M2 |
| Order Code | B43564S0228M2 |
| Capacitance | 2200 µF |
| Rated Voltage (DC) | 400V |
| Capacitance Tolerance | ±20% (M) |
| Life Grade | Long Life (LL) |
| Climatic Category | 25/085/56 (IEC 60068-1) |
| Terminal Type | Screw Terminal (M5) |
| Base Type | Plain Can (Studless) |
