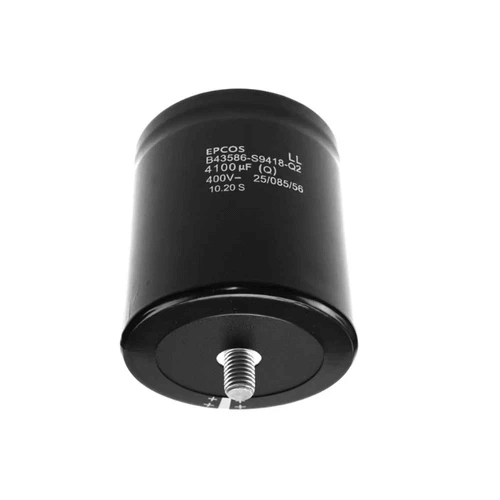

EPCOS B43586-S9418-Q2 B43586 Aluminum Electrolytic Capacitor, 400V 4100µF, Screw Terminal
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43586-S9418-Q2 is a high-performance, Long Life (LL) aluminum electrolytic capacitor engineered for industrial power electronics. Designed for high ripple current capability and exceptional reliability, this component is ideally suited for frequency converters, solar inverters, and professional-grade uninterruptible power supplies (UPS).
This capacitor features a rugged aluminum housing with a screw terminal interface and an integrated mounting stud at the base for secure chassis attachment. The "S" designation indicates a customized specification within the premium B43586 series, providing optimized electrical characteristics for heavy-duty DC link applications and energy storage.
| Product ID | B43586-S9418-Q2 |
| Manufacturer | EPCOS / TDK Electronics |
| Series | B43586 (Long Life Grade) |
| Capacitance | 4100 µF |
| Rated Voltage | 400V DC |
| Capacitance Tolerance | -10% / +30% (Q Code) |
| Terminal Type | Screw Terminals |
| Mounting Style | Threaded Stud Mount (Base) |
| Charge-Discharge Proof | Yes |
| Climate Category | 25/085/56 (IEC 60068-1) |
| Durability Classification | Long Life (LL) |
| Construction | Aluminum case, fully insulated with PVC sleeve |
| Safety Feature | Overpressure Safety Vent |
