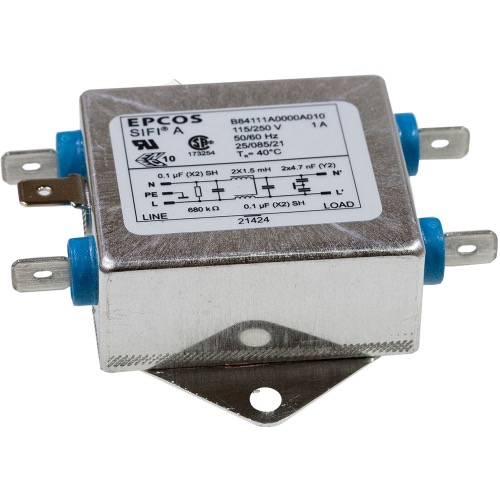

TDK EPCOS B84111A0000A010 SIFI-A Series 2-Line EMC Filter, 1A, 250V AC/DC
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK EPCOS B84111A0000A010 is a high-performance 2-line SIFI-A series EMC filter designed for normal insertion loss in single-phase systems. This compact, multipurpose filter is engineered for industrial electronics and switch-mode power supplies, providing reliable suppression of electromagnetic interference in a space-saving form factor.
| Product ID (MPN) | B84111A0000A010 |
| Brand | TDK EPCOS |
| Series | SIFI-A (2-Line Filters) |
| Rated Current | 1 A |
| Rated Voltage (AC/DC) | 250 V |
| Test Voltage (Line-Line) | 1414 V DC, 2s |
| Leakage Current (Max) | 0.369 mA |
| Terminals | Tab Connectors (6.3 x 0.8 mm) |
| Mounting Type | Case Style A (Lateral Fixing Lugs) |
| Operating Temp. Range | -25 to +85 °C |
| Weight | Approx. 80 g |
| Safety Standards | UL1283, CSA, ENEC |
