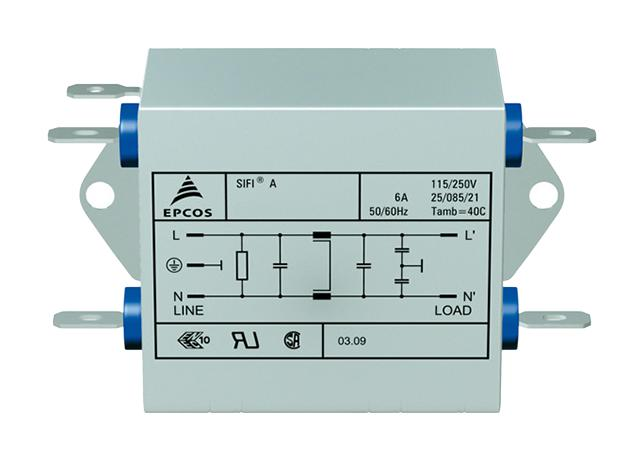

EPCOS B84111A0000A060 B84111A Power Line Filter, 250 V, 6 A, Compact Design
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK B84111A0000A060 is a high-performance SIFI-A series 2-line EMC filter engineered for 1-phase systems. This compact, multipurpose filter provides reliable electromagnetic interference suppression for industrial electronics, telecommunications, and data systems, featuring standard tab terminals for efficient integration into enterprise-grade power management setups.
| Product ID (MPN) | B84111A0000A060 |
| Order Code | B84111A60 |
| Rated Voltage | 250 V AC/DC (50/60 Hz) |
| Rated Current | 6 A |
| Phase | 1-Phase (2-Line) |
| Leakage Current (Max) | 0.369 mA |
| Test Voltage (L-L) | 1414 V DC, 2s |
| Terminal Type | Tab (6.3 x 0.8 mm) |
| Series / Performance | SIFI-A / Multipurpose |
| Operating Temperature | -25 to +85 °C |
| Weight | Approx. 110 g |
| Safety Standards | UL1283, CSA C22.2 No.8, EN60939 |
