TDK EPCOS B25673A4252A040 PhaseCap Compact Capacitor, 25kvar 440V, MKK440-D-25-02
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

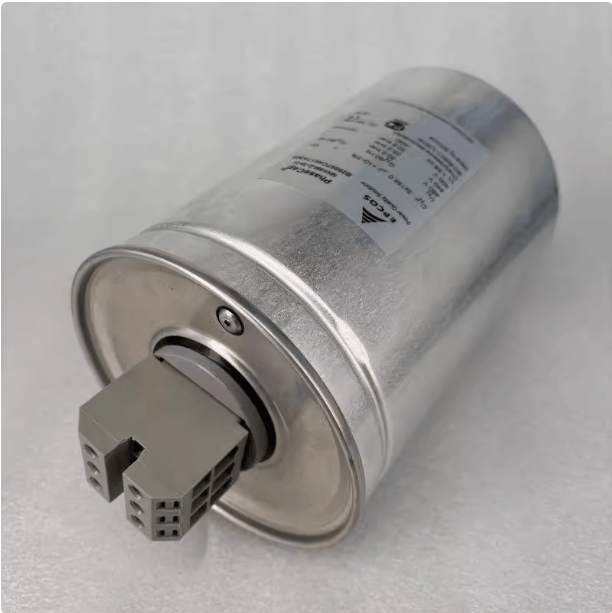

The EPCOS MKK440-D-25-02 (Ordering Code: B25673A4252A040) is a three-phase PhaseCap Compact film capacitor engineered for power factor correction (PFC) applications. Featuring a delta-connected, self-healing polypropylene dielectric and an integrated overpressure disconnector, it delivers reliable operation and high-level safety. Housed in a robust extruded aluminum can with an M12 threaded stud and optimized IP20 safety terminals, this capacitor is perfectly suited for demanding industrial environments and complies fully with IEC 60831 and UL 810 standards.
| Product ID (MPN) | MKK440-D-25-02 |
| Order Code | B25673A4252A040 |
| Series / Product Family | PhaseCap Compact |
| Rated Capacitance (CN) | 3 x 137.1 µF |
| Capacitance Tolerance | –5 / +10% |
| Connection Configuration | Three-Phase, Delta (D) |
| Rated Voltage (VN) | 440 V AC rms |
| Rated Frequency (fN) | 50 / 60 Hz |
| Output Rating | 25.0 kvar @ 50 Hz / 30.0 kvar @ 60 Hz |
| Rated Current (IR) | 33 A @ 50 Hz / 39 A @ 60 Hz |
| Max Permissible Current (Imax) | Up to 1.5 · IR |
| Dissipation Factor | ~0.2 W / kvar (Dielectric) |
| Dielectric Material | Polypropylene Film |
| Safety Component features | Overpressure Disconnector, Self-Healing Technology |
| Terminals | Optimized Safety Terminals (Isolated, IP20) |
| Mounting / Fixing | Threaded Bolt M12 (Max. Torque 10 Nm) |
| Dimensions (Diameter × Height) | 116 × 200 mm |
| Standards Compliance | IEC 60831-1/2, UL 810 (5th Edition) |
