Mersen A6T45 Class T Fast-Acting Power Fuse, 45A, 600VAC / 300VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

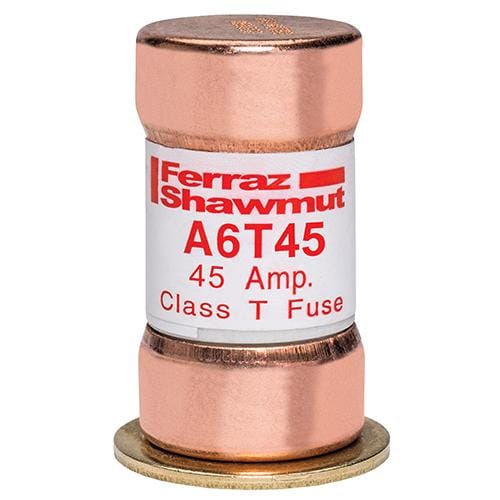

The Mersen A6T45 is an Amp-Trap® Class T fast-acting power fuse rated 45 A, 600 VAC, and 300 VDC. It features ferrule terminals, clip mounting, and a compact glass-melamine body measuring 1.57 × 0.81 in (39.9 × 20.6 mm).
| Catalog Number | A6T45 |
| Fuse Class | Class T |
| Speed / Characteristic | Fast-Acting |
| Ampere Rating | 45 A |
| Rated Voltage | 600 VAC / 300 VDC |
| Frequency | 50/60 Hz |
| Interrupting Rating | 200 kA AC / 100 kA DC |
| Terminal Type | Ferrule |
| Mounting | Clip |
| Product Dimensions | 1.57 × 0.81 in (39.9 × 20.6 mm) |
| Approvals and Standards | UL 248-15, File E2137; CSA C22.2 No. 248.15; DC listed to UL 248 |
Verified applications for A6T Class T fuses include load centers, panelboards, switchboards, circuit breakers, and metering centers.
Apexon Supply provides B2B sourcing, replacement support, and technical alignment for industrial circuit-protection components used in electrical distribution and maintenance systems.
Submit catalog number A6T45, the required quantity, and application requirements to request a B2B quote and procurement review.
