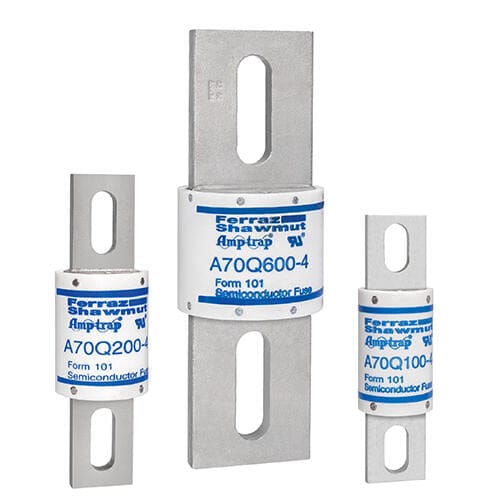

Ferraz Shawmut A70Q175-4 High-Speed Fuse, 175 A, 700 VAC / 650 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Ferraz Shawmut A70Q175-4 is a 175 A A70Q Amp-Trap Form 101 high-speed fuse rated for 700 VAC and 650 VDC circuits. It provides current-limiting protection with extremely low I2t characteristics for inverter and power-electronic applications.
| Manufacturer Part Number | A70Q175-4 |
| Brand | Ferraz Shawmut / Mersen |
| Series | A70Q Amp-Trap Form 101 |
| Fuse Type | High-speed, current-limiting fuse |
| Rated Current | 175 A |
| Rated Voltage | 700 VAC, 650 VDC |
| Interrupting Rating | 100 kA AC/DC |
| L/R Time Constant | 10 ms |
| Mounting Type | Type 4 blades, bolt-in |
| Dimensions A–H | A: 5.09 in (129 mm); B: 1.50 in (38.1 mm); C: 1.96 in (49.8 mm); D: 4.16 in (106 mm); E: 2.91 in (73.9 mm); F: 0.41 in (10.4 mm); G: 1.00 in (25.4 mm); H: 0.25 in (6.4 mm) |
| Approvals and Standards | UL recognized component, UL File E60314; AC guide JFHR2; DC tested to UL 198L parameters |
Typical applications: The A70Q175-4 is used to protect inverters and other equipment requiring responsive AC or DC protection within this voltage range.
B2B sourcing support: Apexon Supply supports procurement review, replacement sourcing, and technical alignment for the Ferraz Shawmut A70Q175-4. Confirm the current rating, voltage rating, interrupting capacity, mounting type, and dimensions against the original equipment requirements.
RFQ instructions: Send the MPN, required quantity, application details, and target specifications to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
