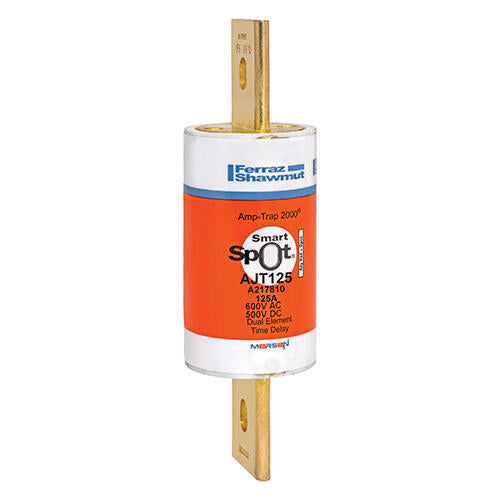

Ferraz Shawmut AJT125 Class J Time-Delay Fuse, 125 A, 600 VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Ferraz Shawmut AJT125 is a 125 A Amp-Trap 2000 Class J time-delay fuse rated for 600 VAC and 400 VDC. This non-indicating, current-limiting fuse is designed to accommodate typical motor-starting and transformer-inrush currents.
| Manufacturer Part Number | AJT125 |
| Brand | Ferraz Shawmut / Mersen |
| Series | Amp-Trap 2000 AJT |
| Fuse Class | Class J |
| Operating Characteristic | Time delay, current limiting |
| Rated Current | 125 A |
| Rated Voltage | 600 VAC, 400 VDC |
| Additional AC Rating | 700 VAC, self-certified |
| Interrupting Rating | 200 kA AC, 100 kA DC |
| Indicator | Non-indicating |
| Dimensions A–H | A: 5-3/4 in (146 mm); B: 1-5/8 in (41 mm); C: 3/16 in (4.8 mm); D: 1-1/8 in (29 mm); E: 1-3/8 in (35 mm); F: 4-3/8 in (111 mm); G: 3/8 in (10 mm); H: 9/32 in (7 mm) |
| Approvals and Standards | UL 248-8 listed, UL File E2137; DC listed to UL 248; CSA C22.2 No. 248.8 certified; IEC 60269-2-1 |
Typical applications: The AJT125 is used in motor circuits, mains, feeders, branch circuits, transformers, control panels, bus duct, load centers, and circuit-breaker backup applications.
B2B sourcing support: Apexon Supply supports procurement review, replacement sourcing, and technical alignment for the Ferraz Shawmut AJT125. Confirm the current rating, voltage rating, fuse class, interrupting capacity, time-delay characteristic, and dimensions against the original equipment requirements.
RFQ instructions: Send the MPN, required quantity, application details, and target specifications to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
