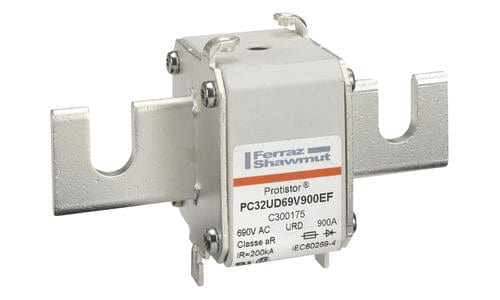

Mersen PC32UD69V900EF / C300175 Protistor Size 32 aR Fuse, 900 A, 690 V
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Mersen PC32UD69V900EF is a Size 32 aR semiconductor fuse designed for the protection of inverters, motor drives, and UPS systems up to 690V. Featuring EF blades for bolted connections, silver-plated contacts, and extremely low I²t current-limiting performance per IEC 60269-4 and VDE 636-23, it delivers reliable protection in demanding industrial environments.
| Product ID (MPN) | PC32UD69V900EF |
| Order Code | C300175 |
| Rated Voltage AC (IEC) | 690 V |
| Rated Voltage AC (UL) | 700 V |
| Rated Current In | 900 A |
| Pre-arcing I²t | 170 kA²s |
| Clearing I²t at Rated Voltage | 990 kA²s |
| Rated Breaking Capacity AC | 200 kA |
| Power Dissipation at In | 125 W |
| Terminal Type | Type EF blades for bolted connections |
| Terminal Design | Standard Terminal |
| UL Certified | Yes |
| Size | Size 32 |
| Material | Silver plated contact surfaces, non-magnetic hardware, solidified sand |
| Weight | 0.57 kg |
| Package Quantity | 3 |
