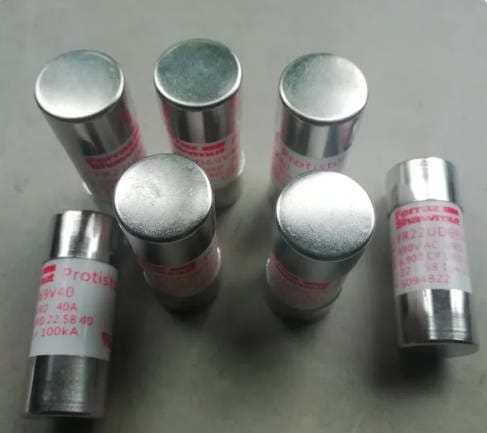

Mersen FR22AM69V80 / H216667 aM Cylindrical Fuse-Link, 80 A, 690 V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen FR22AM69V80 is a size 22x58 aM cylindrical fuse-link for industrial circuit protection. Its Catalog number is FR22AM69V80 and Item number is H216667. This exact variant is rated 80 A at 690 V AC and is listed without striker.
| Catalog number | FR22AM69V80 |
| Item number | H216667 |
| Product Size | 22x58 mm |
| Speed/Characteristic | aM |
| Rated voltage AC (IEC) | 690 V |
| Rated current In | 80 A |
| Rated breaking capacity AC | 120 kA |
| Power dissipation at In | 6.2 W |
| Body Material | Ceramic |
| Contact Materials | Silver plated copper |
| Configuration | Without striker |
Mersen specifies aM fuse-links for protection of motors, transformers, and other loads with in-rush currents.
Apexon Supply provides B2B sourcing, replacement sourcing, and technical alignment support for Mersen FR22AM69V80. Buyers should compare the verified 80 A current rating, 690 V AC rating, aM characteristic, 22x58 size, and no-striker configuration against the original equipment requirements.
Send Catalog number FR22AM69V80 or Item number H216667, required quantity, and application requirements to request a B2B quote for sourcing support.
