Ferraz Shawmut FR22GC69V100 W220911 Semiconductor Fuse, 100 A, 690 VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

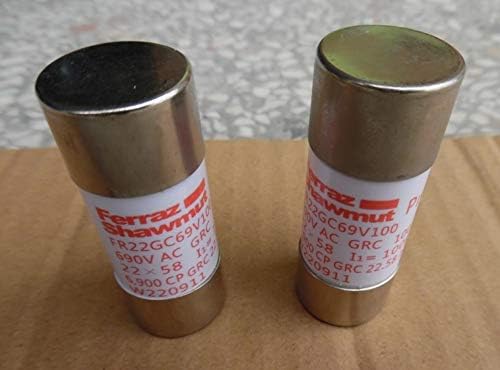

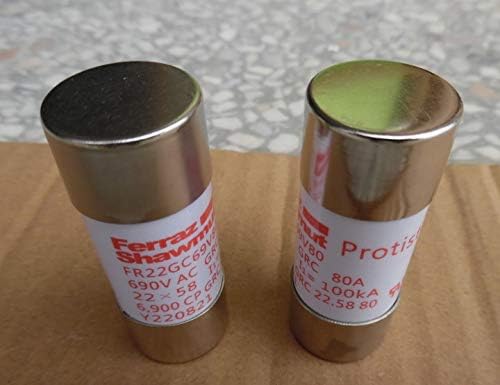

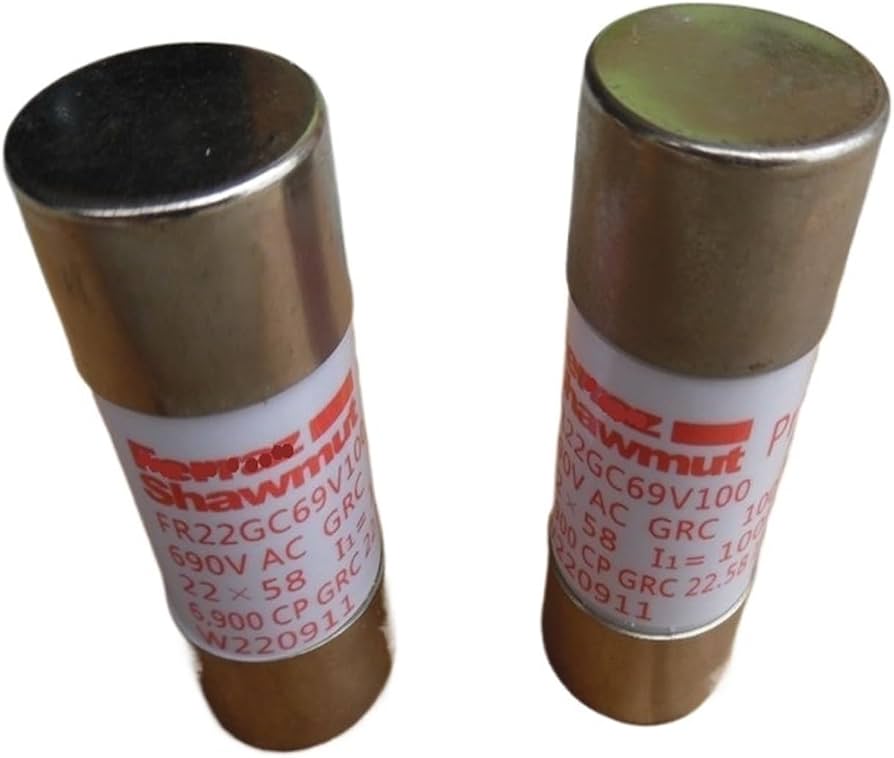

Ferraz Shawmut FR22GC69V100, reference number W220911, is a 100 A, 690 VAC Protistor semiconductor fuse with a 22 x 58 mm ferrule body and gRC operating class. It is designed for semiconductor and power-electronics circuit protection.
| Brand | Ferraz Shawmut |
| Catalog Number | FR22GC69V100 |
| Reference Number | W220911 |
| Product Type | Protistor semiconductor ferrule fuse |
| Fuse Class | gRC |
| Current Rating | 100 A |
| Voltage Rating | 690 VAC |
| Tested Breaking Capacity | 100 kA at 690 V |
| Pre-Arcing I²t at 1 ms | 2,080 A²s |
| Total Clearing I²t at Rated Voltage | 11,950 A²s |
| Power Loss | 9 W at 0.8 In; 17 W at In |
| Dimensions | 58 mm length x 22.2 mm diameter |
| Trip Indicator | Without trip indicator |
Typical applications: Semiconductor protection, power-electronics equipment, low-voltage power systems, drive circuits, rectifiers, inverters, and coordinated circuit-protection assemblies.
Apexon Supply provides B2B sourcing and replacement support using both catalog number FR22GC69V100 and reference number W220911. Buyers should verify the 100 A rating, 690 VAC rating, gRC class, 22 x 58 mm body size, and circuit coordination requirements before replacement.
Send the catalog number, reference number, required quantity, and application requirements to request a B2B quote and technical alignment support.
