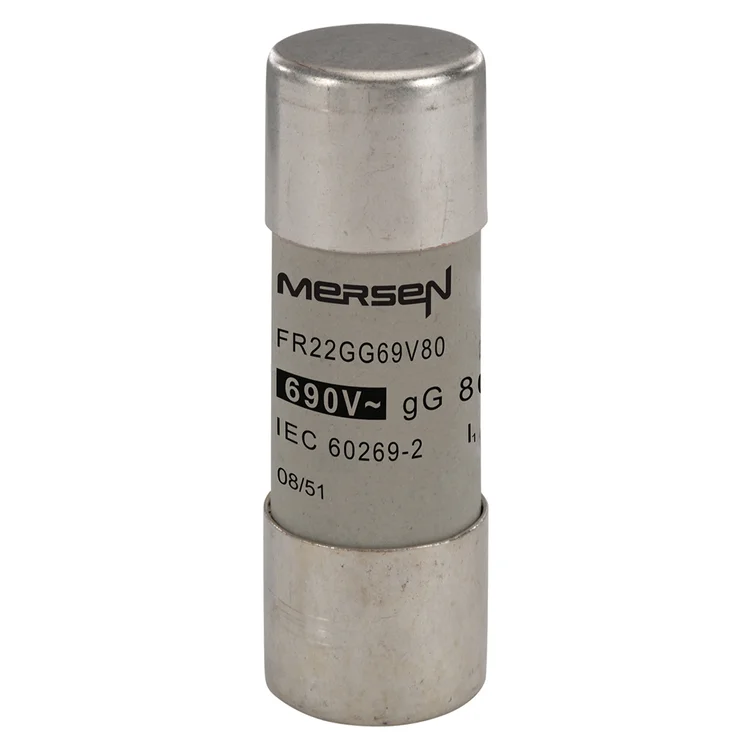

Mersen FR22GG69V80 22x58 gG Ferrule Fuse-Link, 690 VAC, 80 A
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Mersen FR22GG69V80 is a 22x58 mm cylindrical gG ferrule fuse-link for low-voltage IEC circuit protection. This 80 A fuse-link is rated for 690 VAC and 250 VDC, with a gG characteristic for protection of cables, motors, LV networks, and electrical distribution circuits.
| Product ID / MPN | FR22GG69V80 |
| Secondary ID | Q217180 |
| Brand / Category | Mersen / Low Voltage IEC Fuse-Link |
| Rated Voltage AC | 690 V |
| Rated Voltage DC | 250 V |
| Rated Current | 80 A |
| Speed / Characteristic | gG |
| Rated Breaking Capacity AC | 120 kA |
| Rated Breaking Capacity DC | 100 kA |
| Power Dissipation at In | 7.4 W |
| Body Style / Size | Cylindrical, 22x58 mm |
| Body Material | Ceramic |
| Contact Materials | Silver plated copper |
| Standards / Certifications | IEC 60269-1 & -2; Lloyd’s Register of Shipping; Bureau Veritas |
This fuse-link is typically used for line and cable protection against overload and short-circuit conditions in industrial electrical distribution circuits, LV networks, motor circuits, and equipment protection applications.
Apexon Supply supports B2B sourcing and replacement review for FR22GG69V80 fuse-links and related 22x58 mm gG IEC cylindrical fuse products. Buyers should verify current rating, voltage rating, breaking capacity, fuse characteristic, body size, and installation requirements before replacement.
Send the MPN, required quantity, and application requirements to request a B2B quote and technical alignment support.
