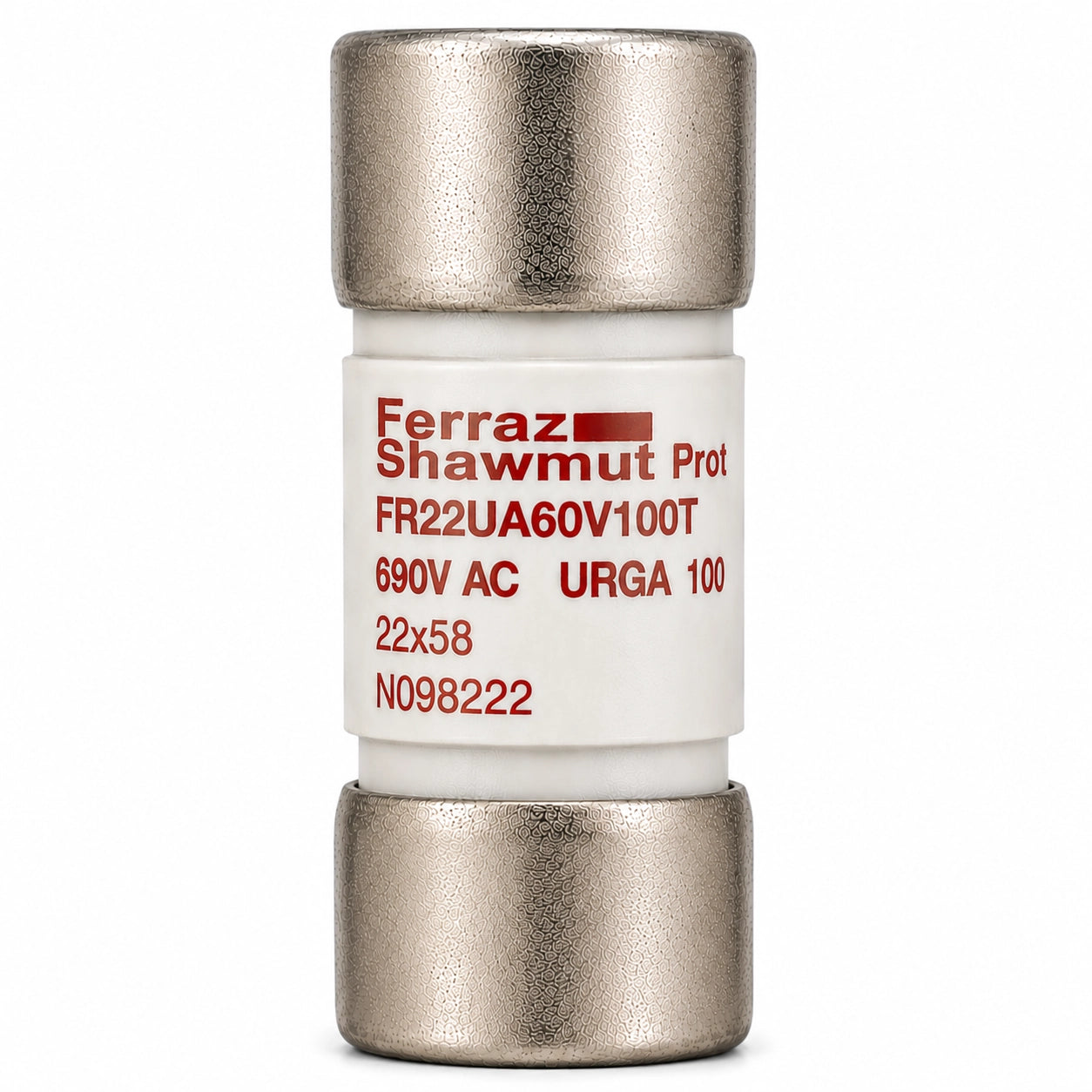

Ferraz Shawmut FR22UA60V100T Semiconductor Fuse, 100 A, 600 VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Ferraz Shawmut FR22UA60V100T is a 100 A, 600 VAC aR-class semiconductor fuse in a 22 x 58 mm ferrule format with a trip-indicator. Identified by reference number N098222, it is designed for the protection of power semiconductors.
| Brand | Ferraz Shawmut |
| Manufacturer Part Number | FR22UA60V100T |
| Reference Number | N098222 |
| Product Category | Semiconductor AC Fuse |
| Current Rating | 100 A |
| Voltage Rating | 600 VAC |
| Fuse Class | aR |
| Body Size | 22 x 58 mm ferrule |
| Indicator | Built-in trip-indicator |
| Tested Breaking Capacity | 200 kA at 600 VAC |
| Pre-arcing I²t at 1 ms | 2150 A²s |
| Total Clearing I²t | 9000 A²s at 600 VAC |
| Power Loss at Rated Current | 25.6 W |
Typical applications include circuit protection for power semiconductor assemblies. Verify the 100 A rating, 600 VAC rating, aR class, 22 x 58 mm ferrule size, and trip-indicator configuration against the original equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for FR22UA60V100T, helping procurement teams evaluate verified identifiers and technical specifications for industrial maintenance and lifecycle requirements.
Send the MPN, required quantity, and application requirements to request a B2B quote and confirm technical alignment.
