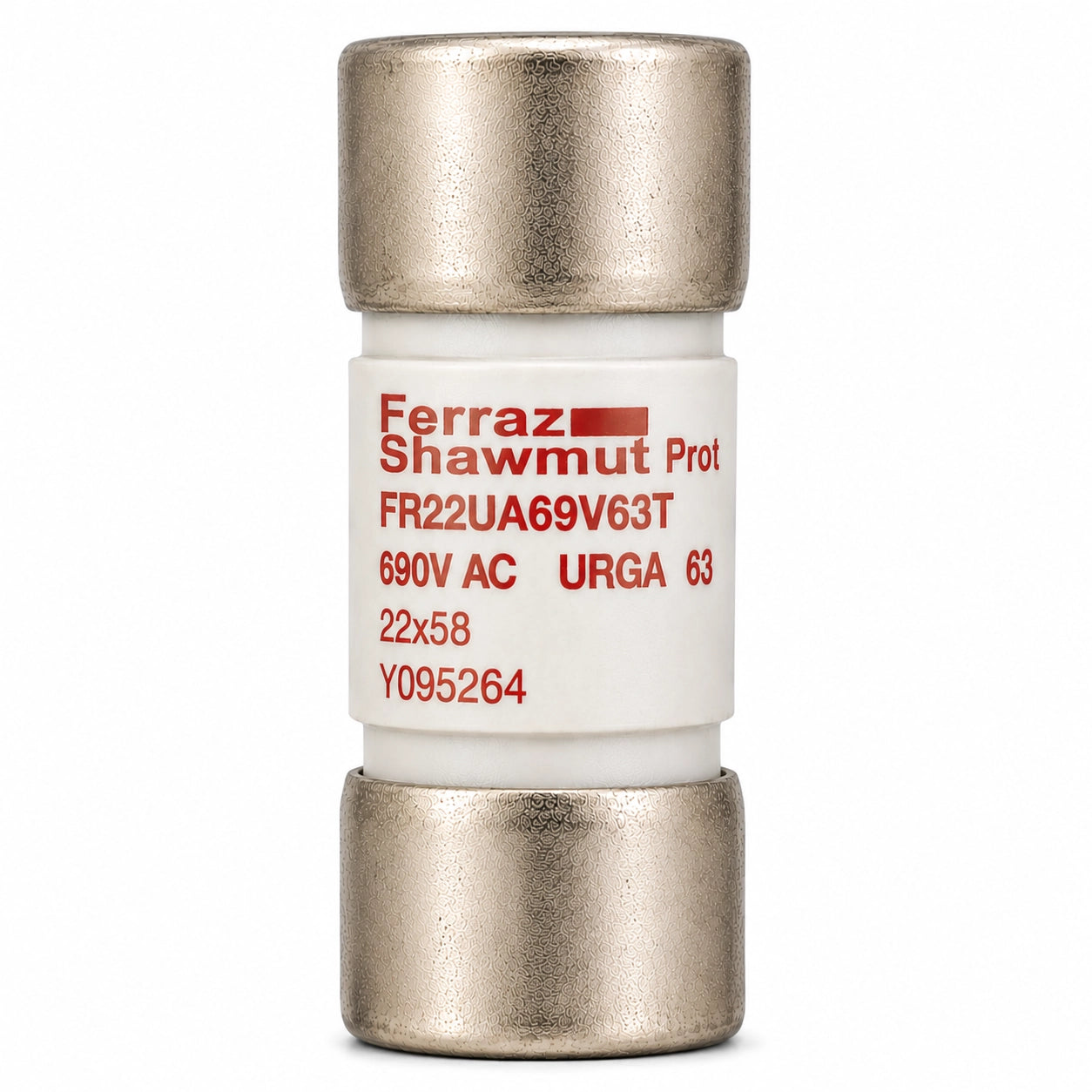

Ferraz Shawmut FR22UA69V63T Y095264 Semiconductor Fuse, 63 A, Trip Indicator
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Ferraz Shawmut FR22UA69V63T is a Protistor 22 x 58 mm ferrule semiconductor fuse with a built-in trip indicator. Reference number Y095264 corresponds to designation 6.921 CP URGA 22.58/63. This aR-class fuse is rated 63 A, with a 690 VAC series rating and a 600 V operating limit for the trip-indicator version.
| Brand | Ferraz Shawmut |
| Catalog Number | FR22UA69V63T |
| Reference Number | Y095264 |
| Designation | 6.921 CP URGA 22.58/63 |
| Fuse Type | Protistor ferrule semiconductor fuse |
| Body Size | 22 x 58 mm |
| Current Rating | 63 A |
| Voltage Rating | 690 VAC series rating; 600 V operating limit for trip-indicator version |
| Fuse Class | aR |
| Standards Reference | IEC 60269.1 and IEC 60269.4; VDE 636-23 |
| Tested Breaking Capacity | 200 kA at 690 V |
| Pre-arcing I²t at 1 ms | 595 A²s |
| Total Clearing I²t at 660 V | 2770 A²s |
| Watts Loss | 9.8 W at 0.8 IN; 17.7 W at IN |
| Trip Indicator | Built-in trip indicator; minimum operating voltage 20 V |
| Weight | 57 g |
This fuse is typically used to protect power semiconductors in AC power electronics, drive systems, converter assemblies, and industrial circuit protection applications requiring aR-class protection and trip-indicator functionality.
Apexon Supply provides B2B sourcing, replacement review, and technical alignment support for Ferraz Shawmut FR22UA69V63T, reference Y095264. Verify the current rating, operating voltage, fuse class, body size, trip-indicator requirements, and equipment specifications before replacement.
Send the MPN FR22UA69V63T, reference number Y095264, required quantity, and application requirements to request RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
