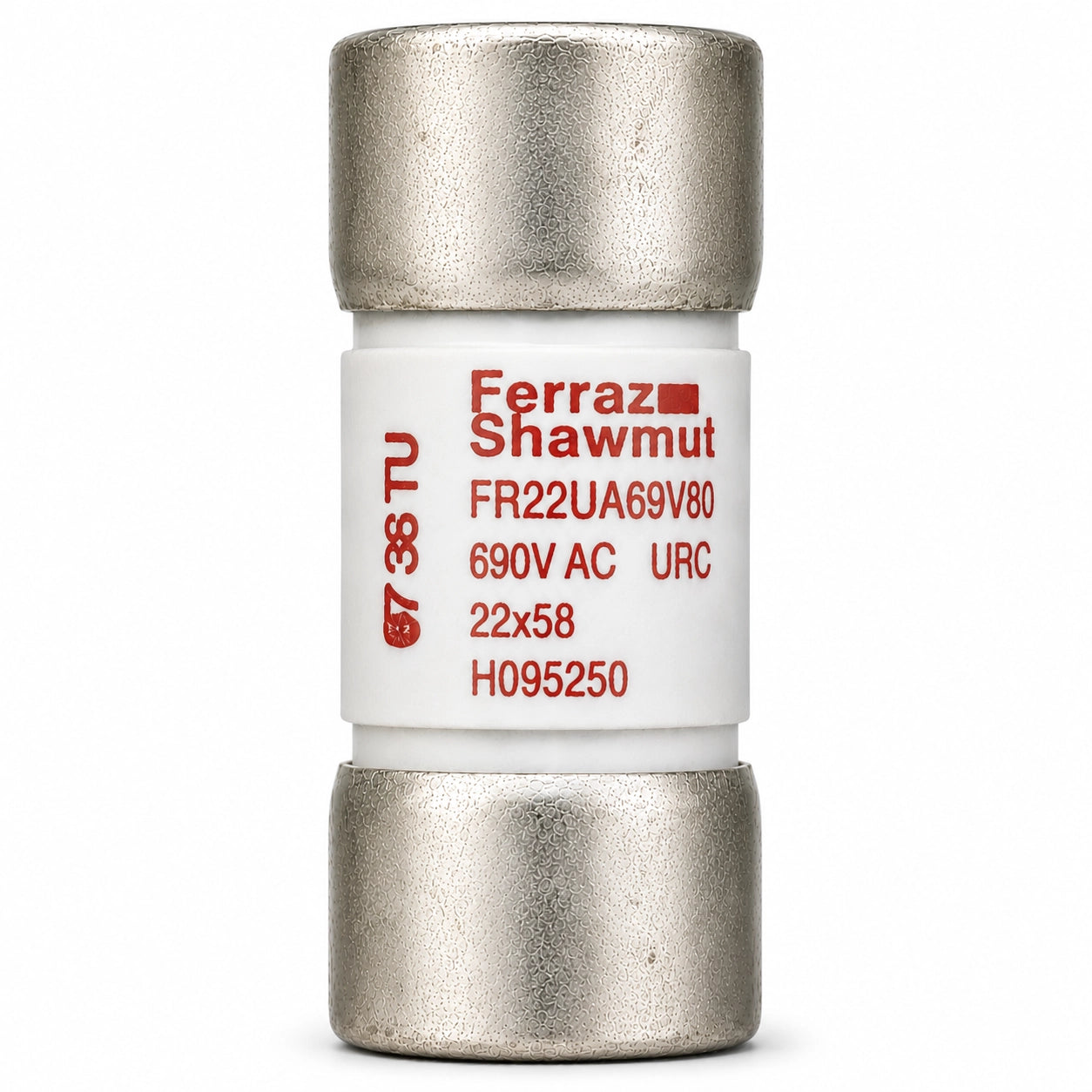

Ferraz Shawmut FR22UA69V80 H095250 Semiconductor Fuse, 80 A, 690 VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Ferraz Shawmut FR22UA69V80 is a Protistor 22 x 58 ferrule semiconductor fuse without blown fuse trip-indicator, identified with reference number H095250 and designation 6.900 CP URGA 22.58/80. It is rated 80 A, 690 VAC, aR class, with 200 kA tested breaking capacity at 690 V.
| Brand | Ferraz Shawmut |
| Catalog Number | FR22UA69V80 |
| Reference Number | H095250 |
| Designation | 6.900 CP URGA 22.58/80 |
| Fuse Type | Protistor ferrule semiconductor fuse |
| Body Size | 22 x 58 mm |
| Current Rating | 80 A |
| Voltage Rating | 690 VAC |
| Class | aR |
| Standards Reference | IEC 60269.1 and IEC 60269.4; VDE 636-23 |
| Tested Breaking Capacity | 200 kA at 690 V |
| Pre-arcing I²t at 1 ms | 1165 A²s |
| Total Clearing I²t at 660 V | 5500 A²s |
| Watts Loss | 12 W at 0.8 IN; 21.7 W at IN |
| Trip Indicator | Without blown fuse trip-indicator |
| Weight | 57 g |
This fuse is typically used for protection of power semiconductors in AC power electronics, drive systems, converter assemblies, and industrial circuit protection applications requiring aR class high breaking capacity fuse protection.
Apexon Supply supports B2B sourcing, replacement review, and technical alignment for Ferraz Shawmut FR22UA69V80 H095250 semiconductor fuses. Buyers should verify current rating, voltage rating, fuse class, body size, breaking capacity, reference number, and equipment requirements before replacement.
Send the MPN FR22UA69V80, reference number H095250, required quantity, and application requirements to request RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
