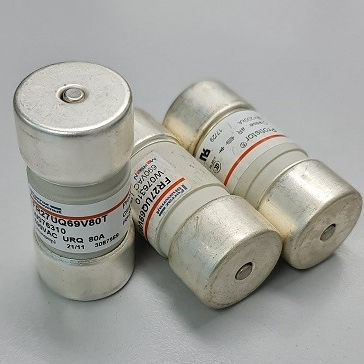

Ferraz Shawmut FR27UQ69V125T / S078331 Protistor 27x60 URQ Semiconductor Fuse, 125A, 690VAC
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Ferraz Shawmut FR27UQ69V125T is a high-speed Protistor semiconductor fuse designed for the ultra-fast protection of power electronics such as rectifiers, inverters, and UPS systems. This aR-class ferrule fuse features an integrated trip-indicator for immediate status signaling and provides a superior breaking capacity of 200kA at 690VAC.
| Product ID (MPN) | FR27UQ69V125T |
| Order Code | S078331 |
| Current Rating (In) | 125 A |
| Voltage Rating (Un) | 690 VAC |
| Utilization Category | aR (Ultra-fast protection) |
| Breaking Capacity | 200 kA @ 690 V |
| Pre-arcing I²t @ 1ms | 1400 A²s |
| Total Clearing I²t @ 660V | 6970 A²s |
| Watts Loss at In | 30 W |
| Body Dimensions | 27 x 60 mm |
| Indicator | With Trip-Indicator |
| Standards | IEC 60269-4, VDE 636-23, UL Recognized |
