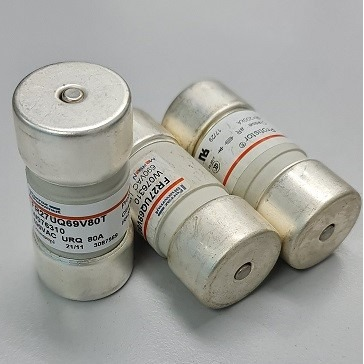

Ferraz Shawmut FR27UQ69V80T / W076310 Protistor 27x60 URQ Semiconductor Fuse, 80A, 690VAC
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Ferraz Shawmut FR27UQ69V80T is a high-capacity Protistor semiconductor fuse designed for the ultra-fast protection of power rectifiers, inverters, and motor drives. This aR-class ferrule fuse features an integrated trip-indicator for remote or visual status monitoring and provides a superior breaking capacity of 200kA at 690VAC.
| Product ID (MPN) | FR27UQ69V80T |
| Order Code | W076310 |
| Current Rating (In) | 80 A |
| Voltage Rating (Un) | 690 VAC |
| Utilization Category | aR (Partial range semiconductor protection) |
| Breaking Capacity | 200 kA @ 690 V |
| Pre-arcing I²t | 350 A²s |
| Total Clearing I²t @ 660V | 1880 A²s |
| Watts Loss at In | 24 W |
| Body Size | 27 x 60 mm |
| Indicator | Equipped with Trip-Indicator |
| Standards | IEC 60269-4, VDE 636-23, UL Recognized |
