Ferraz Shawmut PC44UD75V16CTDM W233170 aR Fuse, 750 V AC, 1600 A
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

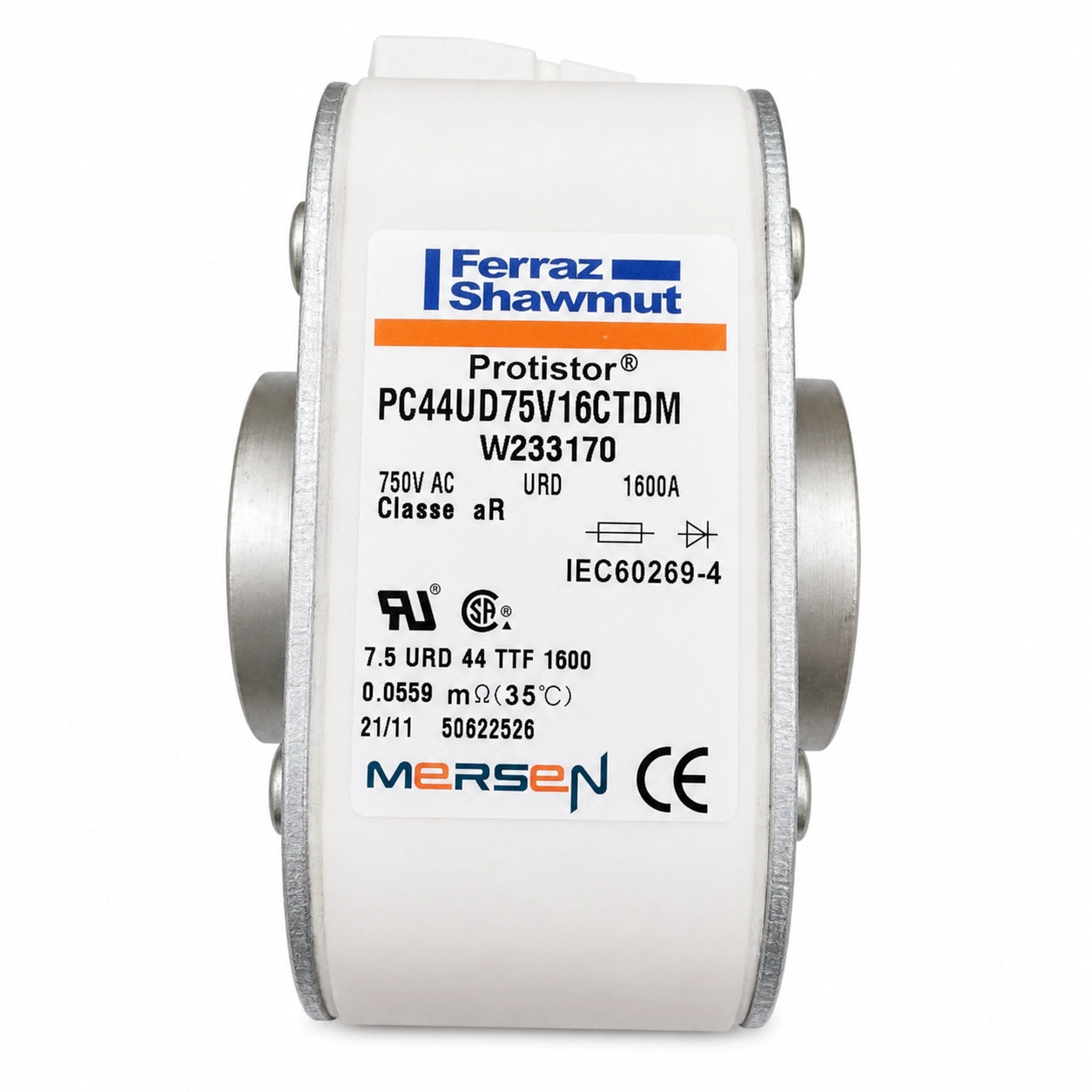

The Ferraz Shawmut PC44UD75V16CTDM, secondary reference W233170, is a Protistor aR fuse rated for 750 V AC and 1600 A. The product label also identifies the URD type marking, IEC 60269-4 standard marking, and a resistance of 0.0559 mΩ at 35°C.
| Brand | Ferraz Shawmut |
| Series | Protistor |
| Manufacturer Part Number | PC44UD75V16CTDM |
| Secondary Reference | W233170 |
| Product Category | aR Fuse |
| Fuse Class | aR |
| Type Marking | URD |
| Rated Voltage | 750 V AC |
| Rated Current | 1600 A |
| Designation | 7.5 URD 44 TTF 1600 |
| Resistance | 0.0559 mΩ at 35°C |
| Standard Marking | IEC 60269-4 |
Typical applications include power semiconductor protection in industrial power-conversion systems requiring an aR fuse with matching 750 V AC, 1600 A, and mechanical configuration.
Apexon Supply provides B2B sourcing and replacement support for Ferraz Shawmut fuses. Buyers should reference both PC44UD75V16CTDM and W233170 and verify the electrical ratings, dimensions, and mounting arrangement before replacement.
Send both product identifiers, the required quantity, and application requirements to request a B2B quote and technical alignment support.
