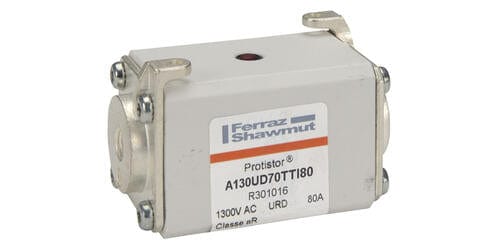

Mersen Protistor® A130UD70TTI80 (R301016) — Protistor Size 70 Square‑Body High‑Speed Fuse, 80 A, 1250 V AC (IEC) / 1300 V AC (UL), aR Semiconductor Characteristic, Striker Indicator, Bolted Flush Ends — Pack of 3

The Mersen Protistor® A130UD70TTI80 (item R301016) is a Size 70 square‑body, ultra‑fast aR fuse‑link designed specifically for semiconductor protection in high‑voltage power conversion equipment. Rated for 80 A and 1250 V AC (IEC) / 1300 V AC (UL), this bolted‑mount fuse features silver‑plated brass flush ends with UNC threads, an integral striker (indication) system, and ceramic body construction. Supplied as a pack of 3, Protistor® fuse‑links use die‑cut silver elements embedded in solidified sand to control arc behavior, minimize I²t and provide high interrupting capability.

Key specifications

• Manufacturer/Brand: Mersen (Protistor®)
• Item number / Catalog: R301016 / A130UD70TTI80
• Product type: Square‑body high‑speed semiconductor fuse (Protistor Size 70)
• Ampere rating: 80 A
• Voltage rating: 1250 V AC (IEC); 1300 V AC (UL)
• Utilization category / Characteristic: aR (ultra‑fast for semiconductor protection)
• Fuse size: 70 (construction size 70)
• Interrupting / Breaking capacity: 200 kA (AC max I.R.)
• Mounting / Connection: Bolted mounting; flush ends with UNC threads; silver‑plated brass terminals
• Indication: Yes — Striker (integrated low‑voltage trip indicator)
• Clearing I²t at rated voltage: 3,780 A²s
• Melting I²t: 470 A²s
• Body / Insulating material: Ceramic
• Power dissipation at rated current: 27 W
• Dimensions (nominal): Length 74 mm × Width 39.8 mm × Height 49.5 mm
• Unit weight: 0.35 kg (per unit); Sell pack quantity: 3; Sell pack weight: 1.05 kg
• Typical applications: Protection of diodes, thyristors, GTOs, IGBTs; power converters, inverters, rectifiers, DC drives

Features & benefits

• Ultra‑fast aR characteristic engineered for semiconductor protection with low I²t for improved device survivability.
• High 200 kA interrupting capacity for robust protection in high fault‑level systems.
• Silver die‑cut elements embedded in solidified sand provide controlled arcing and consistent clearing performance.
• Integrated striker indication allows visual/remote blown‑fuse detection and can operate field‑mountable microswitches.
• Non‑magnetic hardware and silver‑plated contacts for reliable long‑term conductivity.

Handling & installation notes

• Install using bolted mounting hardware compatible with UNC threads; ensure proper torque per equipment instructions.
• Confirm compatibility with fuse holders/mounts for Protistor Size 70 and bolted connection geometry.
• Replace only with identical Mersen Protistor® Size 70 aR fuse‑links to maintain system coordination.
• Consult Mersen datasheet for full time‑current curves and coordination with upstream devices.

Ordering & packaging

• Pack of 3. EAN/UPC: 3605340576597.
