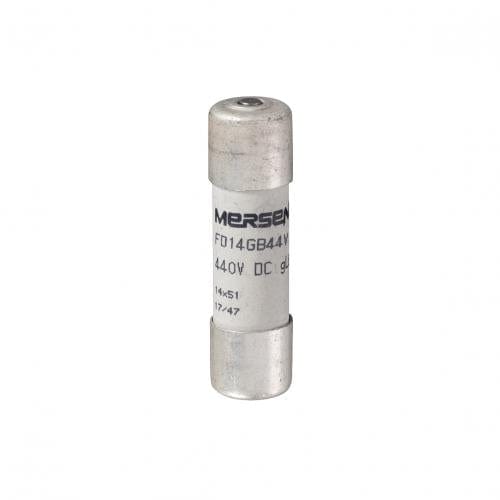

Mersen Protistor S098410 (FD14GB44V32T) — Protistor® 14x51 gLB Semiconductor Fuse, 32 A, 440 VDC, Ceramic Cylindrical, Ferrule Terminals with Striker Indication — Pack of 10

The Mersen Protistor S098410 (catalog FD14GB44V32T) is a high‑speed cylindrical semiconductor fuse (size 14x51) designed for DC power electronics protection. With a 32 A rating and 440 VDC IEC rating, the gLB characteristic provides ultra‑fast interruption suitable for protection of diodes, thyristors and IGBT devices. This version features ferrule terminals, silver‑plated copper contacts and striker indication for blown‑fuse signaling. Supplied as a pack of 10.

Key specifications

• Manufacturer: Mersen (Protistor®)
• Catalog / Item number: FD14GB44V32T / S098410
• Series / Fuse size: Protistor® size 14x51 (cylindrical)
• Ampere rating: 32 A
• Voltage rating: 440 V DC (IEC)
• Utilization category / characteristic: gLB (high‑speed for semiconductor protection)
• Mounting: Clip mounting
• Connection / terminal type & material: Ferrule terminals; silver‑plated copper contacts
• Body / insulating material: Ceramic
• Indication system: Yes — striker type (for microswitch or visual indication)
• Dimensions: Ø 14.3 mm × 51 mm length
• Power dissipation at rated current: 4.3 W
• Unit weight: 0.019 kg; Sell pack: 10 EA; Sell pack weight: 0.19 kg
• Product group: Semiconductor protection fuses
• RoHS compliant: Yes

Features & benefits

• gLB ultra‑fast characteristic engineered for reliable semiconductor protection in DC circuits.
• High DC interrupting capability and low I²t characteristics (refer to datasheet for time‑current curves and coordination).
• Striker indication enables prompt blown‑fuse detection and optional microswitch integration.
• Silver‑plated copper terminals ensure low contact resistance; ceramic body provides thermal stability.
• Compact 14x51 format suitable for space‑constrained power assemblies.

Applications

• Protection of DC power converters, rectifiers, inverters, UPS, traction and industrial drives using power semiconductors.
• Use where high DC voltage interruption and rapid clearing of faults are required.

Installation & handling notes

• Replace only with identical Protistor® 14x51 gLB fuses to preserve protective coordination.
• Install in compatible clip mounting holders rated for gLB semiconductor fuses and ferrule terminals.
• Follow Mersen datasheet for mounting torque, conductor sizing and striker/microswitch wiring.
• Coordinate with upstream protective devices and verify equipment short‑circuit ratings.

Documentation & support

• Consult Mersen Protistor technical datasheets and time‑current curves for detailed selection, coordination and installation guidance.
