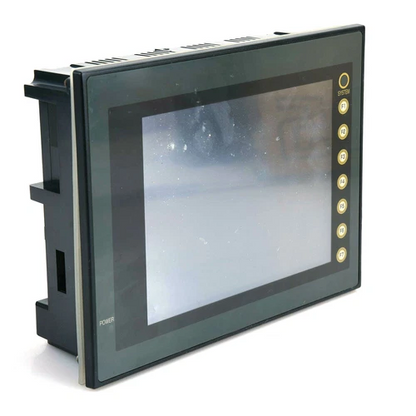

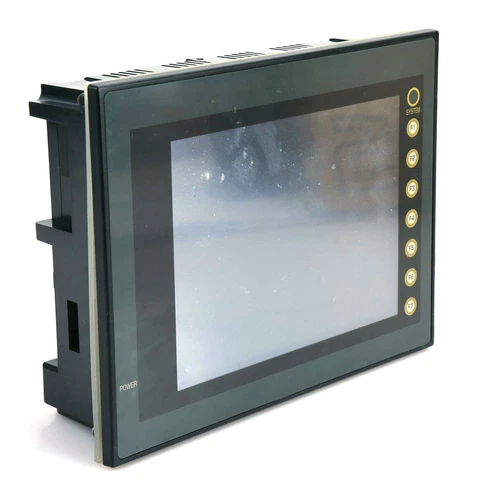

Fuji Electric V710S 10.4-Inch HMI, 800 x 600 SVGA, 100-240VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Fuji Electric V710S is a 10.4-inch Human Machine Interface in the Monitouch V7 series for industrial visualization and control. It combines an 800 x 600 SVGA TFT color display, 32,768-color rendering and an analog resistance film touch interface.
| Manufacturer Part Number | V710S |
| Series | Monitouch V7 |
| Display | 10.4-inch TFT color LCD |
| Resolution | 800 x 600 pixels, SVGA |
| Color Depth | 32,768 colors |
| Touch Interface | Analog resistance film |
| Serial Interfaces | D-sub 25-pin RS-232C/RS-422 and two modular 8-pin RS-232C/RS-485 ports |
| Power Requirement | 100-240VAC |
| Memory Card Support | CompactFlash card |
| Panel Cut-out | 289.0 x 216.2mm |
Typical applications: Industrial machine interfaces, PLC visualization, process monitoring and operator control panels requiring SVGA graphics and serial communication with control equipment.
Apexon Supply provides B2B sourcing and replacement support for Fuji Electric V710S, including technical alignment against display resolution, power requirements, serial interfaces and panel cut-out dimensions.
Send the MPN, required quantity and application requirements to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
