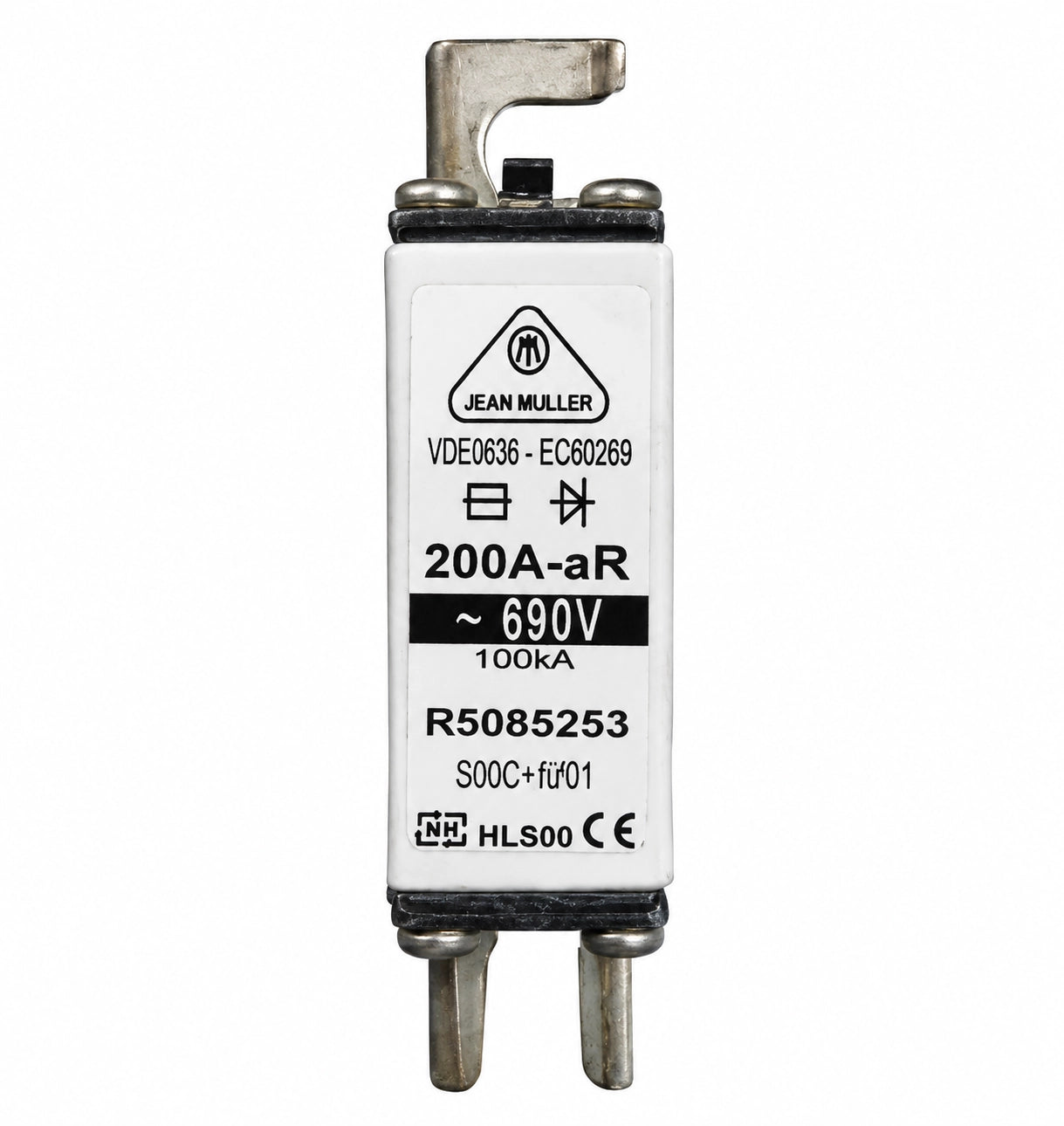

Jean Muller R5085253 Semiconductor Fuse, 200A, 690V AC, 100kA
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Jean Muller R5085253 is an NH00 semiconductor protection fuse-link rated at 200 A and 690 V AC. Identified as type S00C+/üf0/200A/690V, it has an aR partial-range utilization category, 100 kA rated breaking capacity, screw contacts with 80 mm hole centres, and a top indicator. Sicherungskatalog_2015_Kapitel_4_Halbleiterschutzsicherungseinsaetze.pdf
| Brand | Jean Muller |
| Article Number | R5085253 |
| Type | S00C+/üf0/200A/690V |
| Product Category | Semiconductor Protection Fuse-Link |
| Rated Current | 200 A |
| Rated Voltage | 690 V AC |
| Utilization Category | aR Partial-Range Semiconductor Protection |
| Rated Breaking Capacity | 100 kA |
| Fuse Size | NH00 |
| Contact Type | Screw Contact, 80 mm Hole Centres |
| Operating I²t at Rated Voltage | 31,000 A²s |
| Pre-Arcing I²t | 4,000 A²s |
| Power Dissipation | 38 W |
| Indicator | Top Indicator |
| Standards | IEC/EN 60269-1, IEC/EN 60269-4, DIN VDE 0636-2 |
Typical applications include short-circuit protection for power semiconductors such as diodes and thyristors in industrial drives, power conversion equipment, rectifiers, inverters, and other semiconductor-based electrical systems. Separate overload protection is required for an aR partial-range fuse application.
Apexon Supply provides B2B sourcing and replacement support for Jean Muller R5085253, including technical identification, specification alignment, and procurement review for semiconductor protection systems.
Submit the article number, required quantity, and application requirements to request a B2B quote and confirm technical alignment.
