GP:50 370AI-C-SB-A37.50 Pressure Transmitter, 20,000 PSI, 4-20 mA Output
Regular price
$4,800.00 USD
Regular price
Sale price
$4,800.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

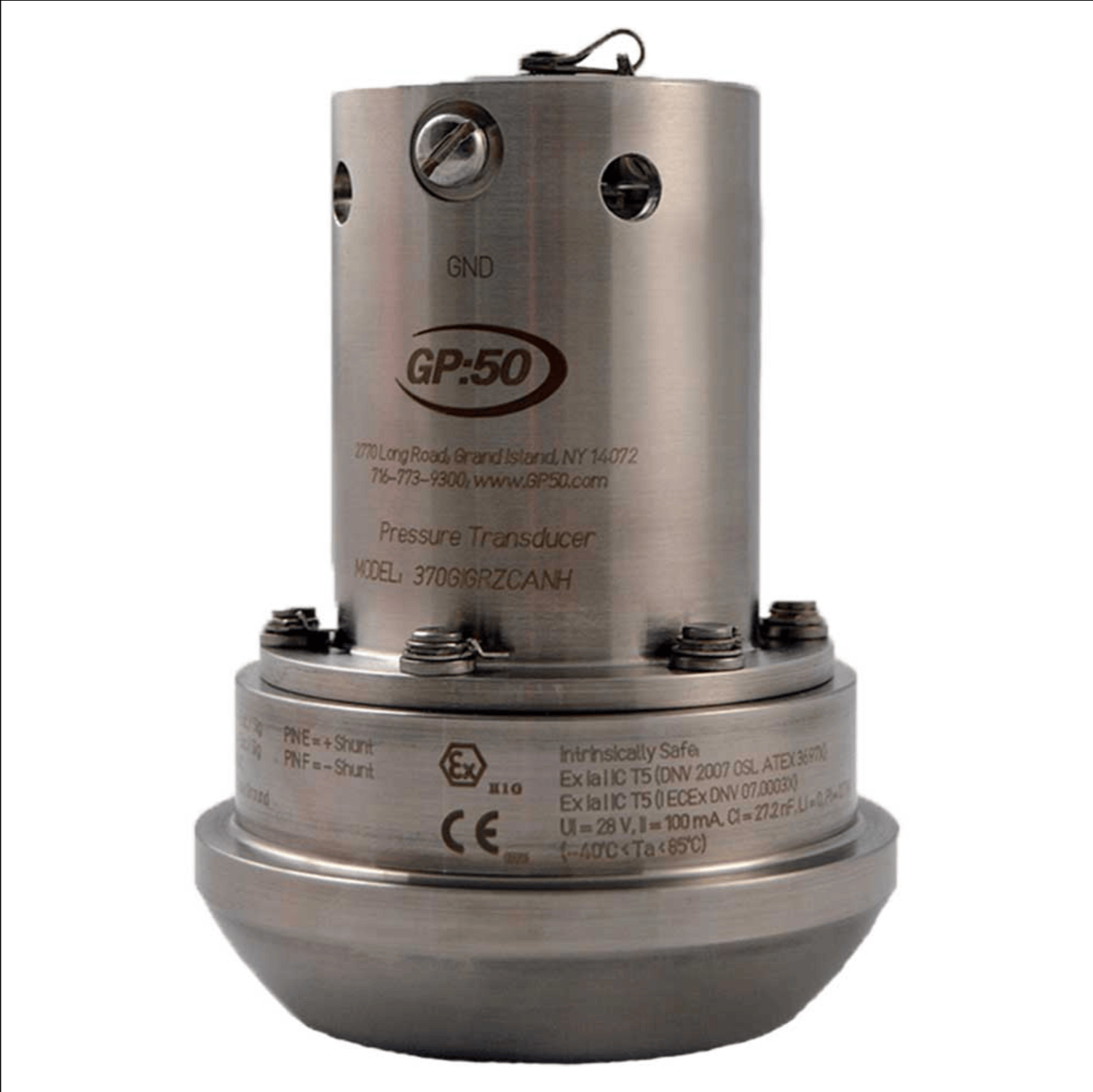

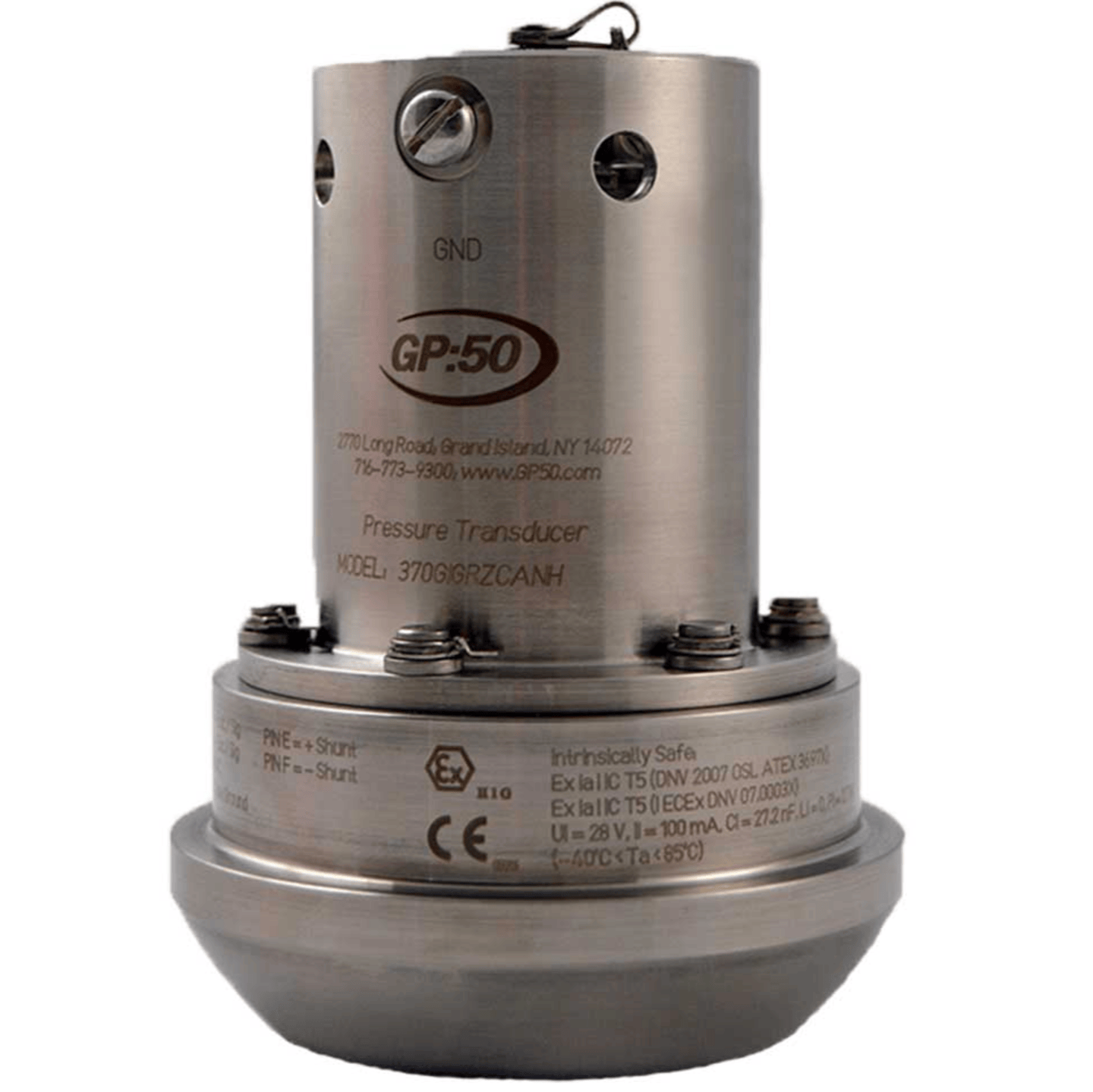

The GP:50 Model 370 (MPN: 370AI-C-SB-A37.50) is a ruggedized WECO "Hammer" Union pressure transmitter engineered for the extreme environments of oilfield services. Specifically designed for fracking, cementing, and wellhead measurement, this unit features a heavy-duty 2-inch #1502 wing union fitting and Inconel X750 wetted parts to provide superior corrosion resistance and structural integrity under high-pressure, high-vibration conditions.
| Product ID (MPN) | 370AI-C-SB-A37.50 |
| Series | Model 170/270/370 WECO Hammer Union |
| Pressure Range | 0 to 20,000 PSI (1,379 BAR) |
| Output Signal | 4-20 mA |
| Accuracy (BFSL) | ≤±0.25% FSO (Standard) |
| Process Connection | WECO 2" - 1502 Wing Union |
| Wetted Materials | Inconel X750 NACE compliant |
| Electrical Connection | Bendix PT02E-10-6P (6-pin) |
| Excitation Voltage | 9 to 36 VDC |
| Hazardous Approvals | FM/CSA/ATEX/IEC Intrinsic Safety Class 1 Div 1 |
| Operating Temperature | -50 °F to +190 °F (-45 °C to +88 °C) |
