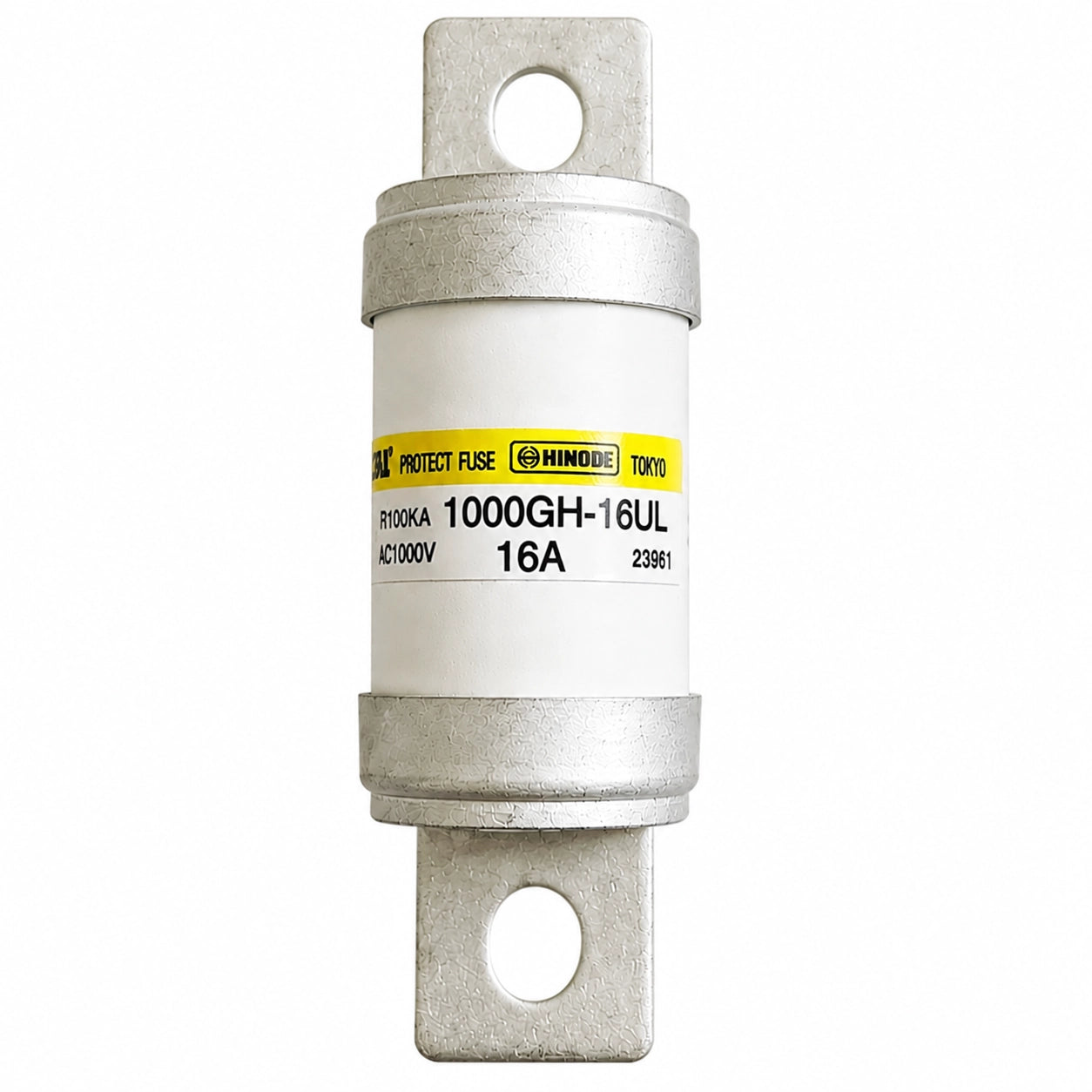

Hinode 1000GH-16UL High-Speed Fuse, 16 A, AC/DC 1000 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 1000GH-16UL is a 16 A cylindrical high-speed fuse for industrial power-electronic circuit protection. Verified 1000GH series specifications include AC/DC 1000 V operation, 100 kA breaking capacity, 20 A²s pre-arcing I²t, and UL recognition.
| Manufacturer Part Number | 1000GH-16UL |
| Product Category | Cylindrical high-speed fuse |
| Rated Current | 16 A |
| Rated Voltage | AC 1000 V / DC 1000 V |
| Breaking Capacity | AC 1000 V: 100 kA; DC 1000 V, L/R 3 ms: 100 kA |
| Minimum Breaking Current | 6 × rated current |
| Maximum Arc Voltage | 2000 V |
| Pre-Arcing I²t | 20 A²s |
| Total I²t | 230 A²s at AC 1000 V and 100 kA |
| Power Loss | 3.6 W |
| Recognition | UL Recognized |
Typical applications include semiconductor protection, power converters, rectifiers, inverters, industrial drives, and other power-electronic equipment requiring high-speed fault-current interruption.
Apexon Supply provides B2B sourcing and replacement support for the Hinode 1000GH-16UL, including verified specification review, procurement assistance, and technical alignment.
Send the manufacturer part number, required quantity, and application requirements to request a B2B quote for sourcing support.
