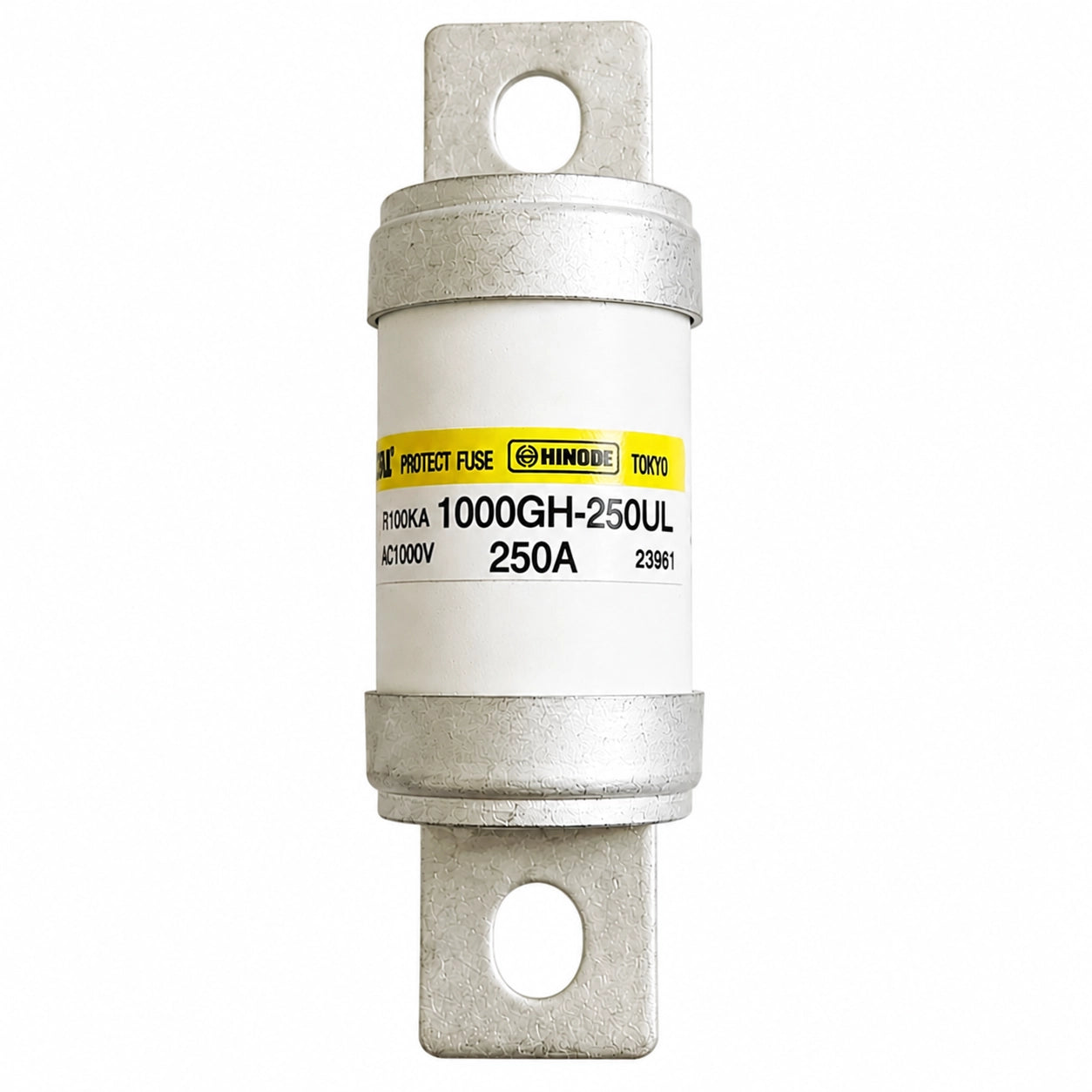

Hinode 1000GH-250UL High-Speed Fuse, 250 A, AC/DC 1000 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 1000GH-250UL is a 250 A high-speed cylindrical fuse designed for semiconductor and industrial power circuit protection. Verified 1000GH series specifications identify this model with AC/DC 1000 V operation, 100 kA breaking capacity, and UL recognition for applicable versions.
| Brand | Hinode |
| Manufacturer Part Number | 1000GH-250UL |
| Product Category | High-Speed Fuse |
| Rated Current | 250 A |
| Rated Voltage | AC 1000 V / DC 1000 V |
| Breaking Capacity | AC 1000 V: 100 kA; DC 1000 V (L/R 3 ms): 100 kA |
| Minimum Breaking Current | 6 × rated current |
| Maximum Arc Voltage | 2000 V |
| Pre-Arcing I²t | 6600 A²s |
| Total I²t | 62,000 A²s at AC 1000 V / 100 kA |
| Power Loss | 90 W |
| Recognition | UL Recognized |
Typical applications include semiconductor protection, inverters, converters, rectifiers, UPS systems, industrial drives, and other high-power electronic equipment requiring fast fault-current interruption.
Apexon Supply provides B2B sourcing support for the Hinode 1000GH-250UL, helping procurement teams with technical verification, replacement sourcing, and industrial lifecycle support.
Send the manufacturer part number, required quantity, and application details to request a B2B RFQ and confirm technical alignment.
