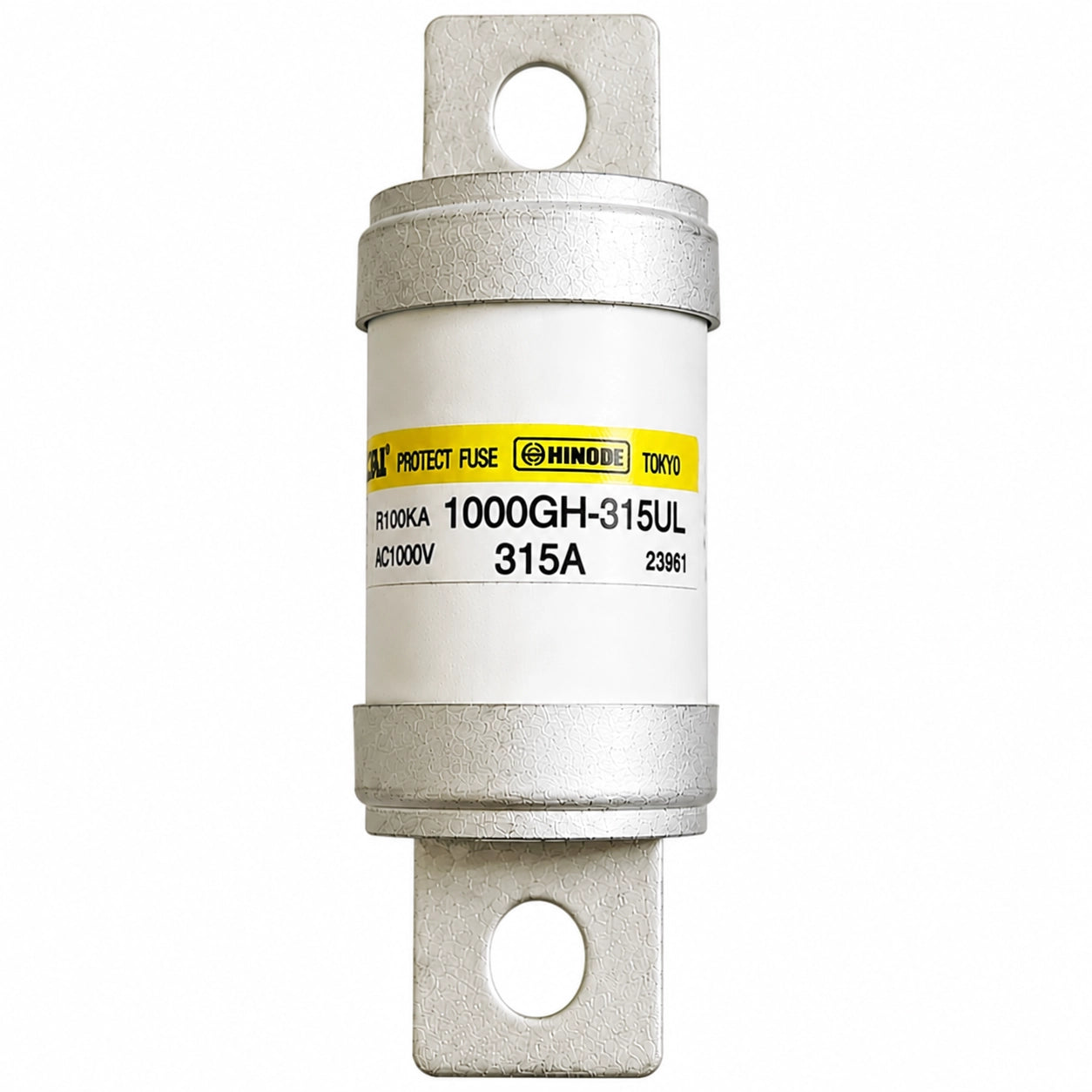

Hinode 1000GH-315UL High-Speed Fuse, 315A, AC/DC 1000V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 1000GH-315UL is a high-speed fuse rated at 315A for semiconductor and industrial circuit protection. It supports AC 1000V and DC 1000V applications with a verified 100kA interrupting capacity.
| Brand | Hinode |
| Manufacturer Part Number | 1000GH-315UL |
| Product Category | High-Speed Fuse |
| Rated Current | 315 A |
| Rated Voltage | AC 1000V / DC 1000V |
| Interrupting Capacity | 100 kA |
| Melting I²t | 10000 A²s |
| Total Clearing I²t at AC 1000V | 90000 A²s |
| Power Loss | 120 W |
| Maximum Arc Voltage | 2000 V |
Typical applications include semiconductor protection, power converters, industrial drives, rectifiers, inverters, and high-power electrical equipment requiring fast overcurrent interruption.
Apexon Supply provides B2B sourcing and replacement support for the Hinode 1000GH-315UL, with verified specifications available for procurement review and technical alignment.
Send the manufacturer part number, required quantity, and application requirements to request a B2B quote and sourcing support.
