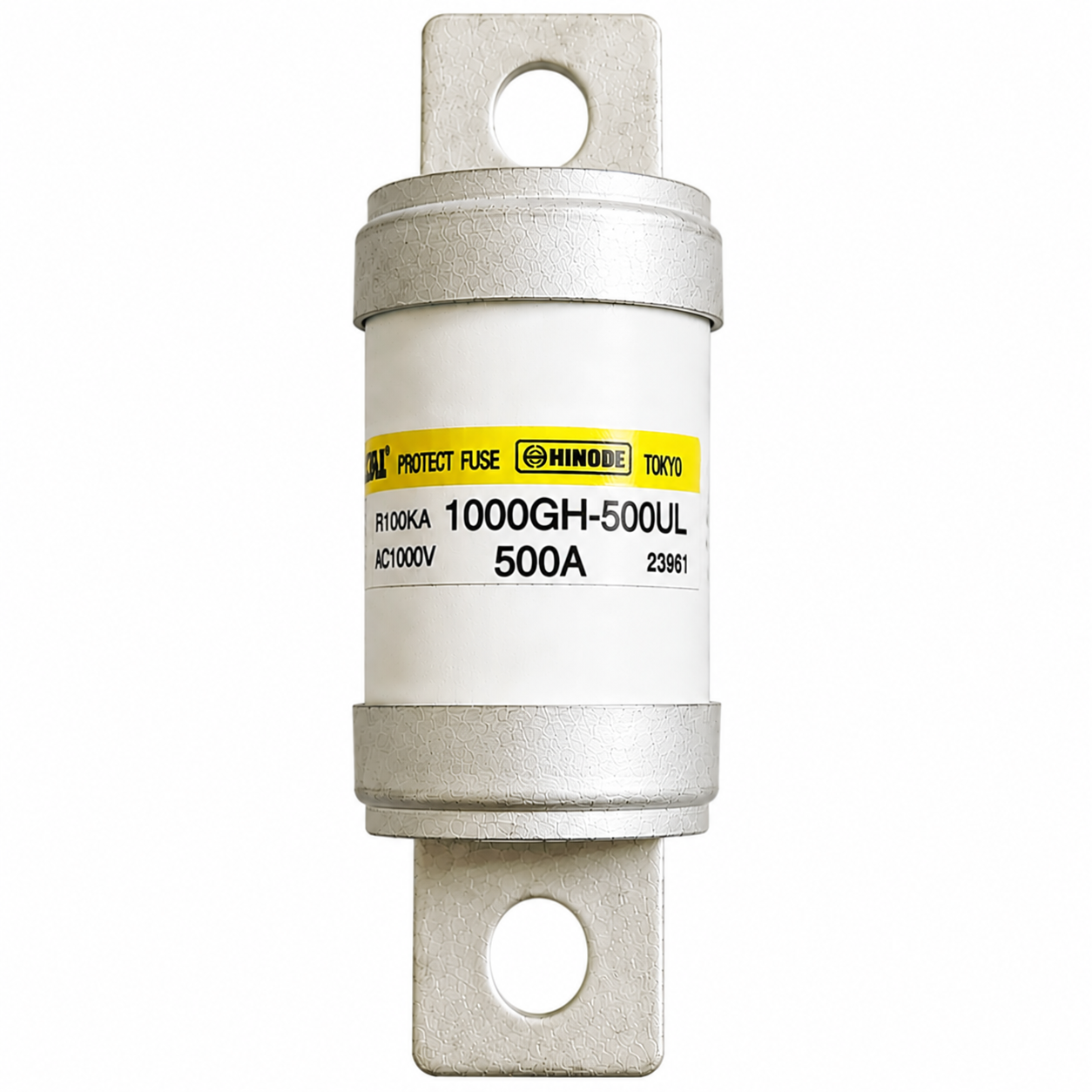

Hinode 1000GH-500UL High-Speed Fuse, 500A, AC/DC 1000V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 1000GH-500UL is a 500A high-speed fuse for semiconductor and industrial circuit protection. Verified ratings include AC 1000V and DC 1000V operation, 100kA interrupting capacity, and 250000 A²s total clearing I²t at AC 1000V.
| Brand | Hinode |
| Manufacturer Part Number | 1000GH-500UL |
| Product Category | High-Speed Fuse |
| Rated Current | 500 A |
| Rated Voltage | AC 1000V / DC 1000V |
| Interrupting Capacity | 100 kA |
| Melting I²t | 26400 A²s |
| Total Clearing I²t at AC 1000V | 250000 A²s |
| Power Loss | 190 W |
| Maximum Arc Voltage | 2000 V |
| Dimensions A × B × C | 127 × 101 × 70 mm |
| Mass | 570 g |
Typical applications include semiconductor protection, industrial drives, rectifiers, inverters, power converters, and high-power electrical equipment requiring rapid overcurrent interruption.
Apexon Supply provides B2B sourcing and replacement support for the Hinode 1000GH-500UL, using verified technical data to support procurement review and technical alignment.
Send the manufacturer part number, required quantity, and application requirements to request a B2B quote and industrial sourcing support.
