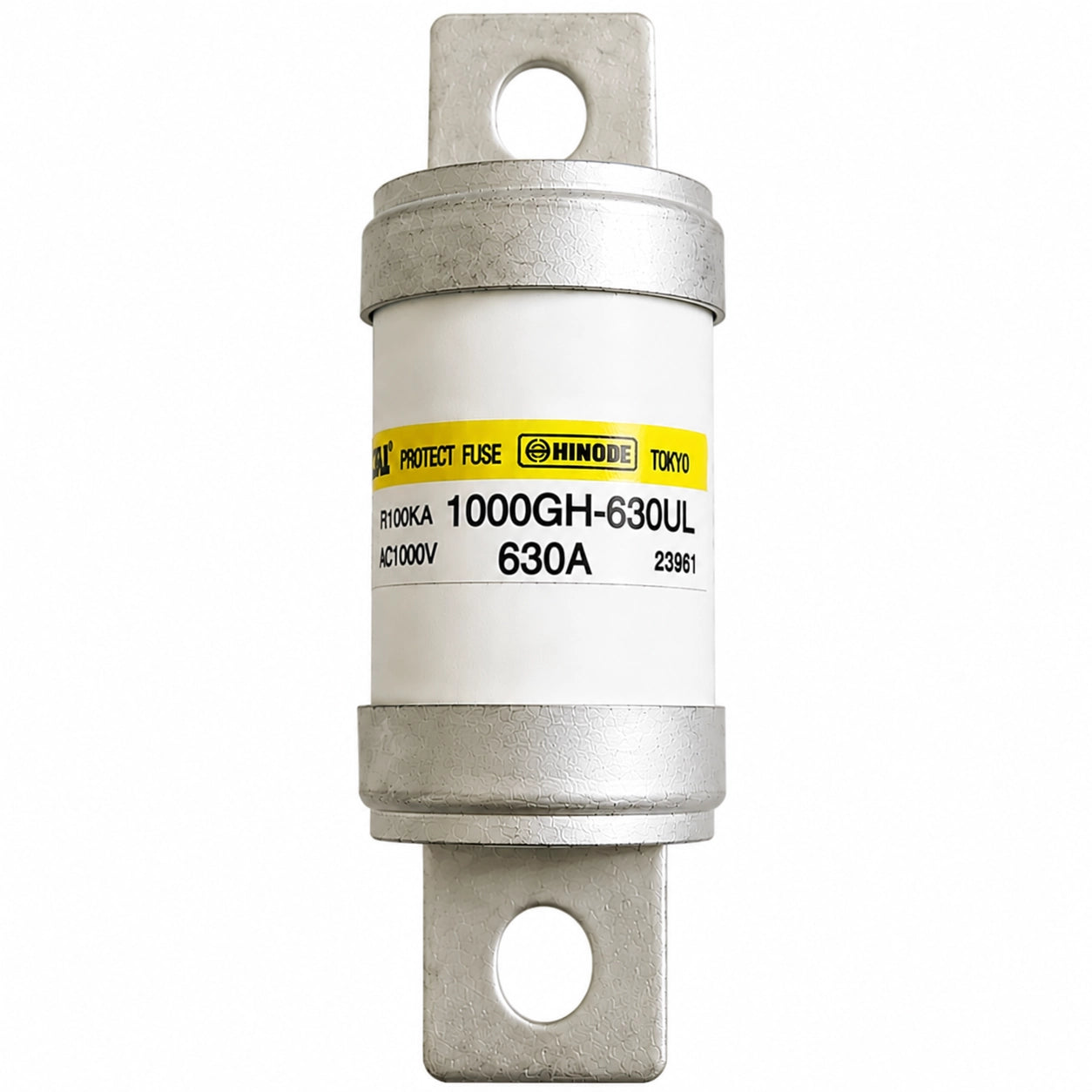

Hinode 1000GH-630UL High-Speed Fuse, 630A, AC/DC 1000V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 1000GH-630UL is a high-speed fuse designed for semiconductor and industrial circuit protection. Verified specifications include a 630A rated current, AC 1000V/DC 1000V rated voltage, and a 100kA interrupting capacity. This fuse is intended for high-power electrical systems requiring rapid overcurrent protection.
| Brand | Hinode |
| Manufacturer Part Number | 1000GH-630UL |
| Product Category | High-Speed Fuse |
| Rated Current | 630 A |
| Rated Voltage | AC 1000V / DC 1000V |
| Interrupting Capacity | 100 kA |
| Melting I²t | 39500 A²s |
| Total Clearing I²t at AC 1000V | 370000 A²s |
| Power Loss | 250 W |
| Maximum Arc Voltage | 2000 V |
| Dimensions (A × B × C) | 127 × 101 × 70 mm |
| Weight | 570 g |
Typical applications include semiconductor protection, industrial drives, inverters, rectifiers, UPS systems, DC power systems, and other high-power electrical equipment requiring high-speed fault protection.
Apexon Supply provides B2B sourcing support for the Hinode 1000GH-630UL using verified technical specifications to assist procurement teams with replacement sourcing and technical alignment.
Submit the manufacturer part number, required quantity, and application details to request a B2B quote and industrial sourcing support.
