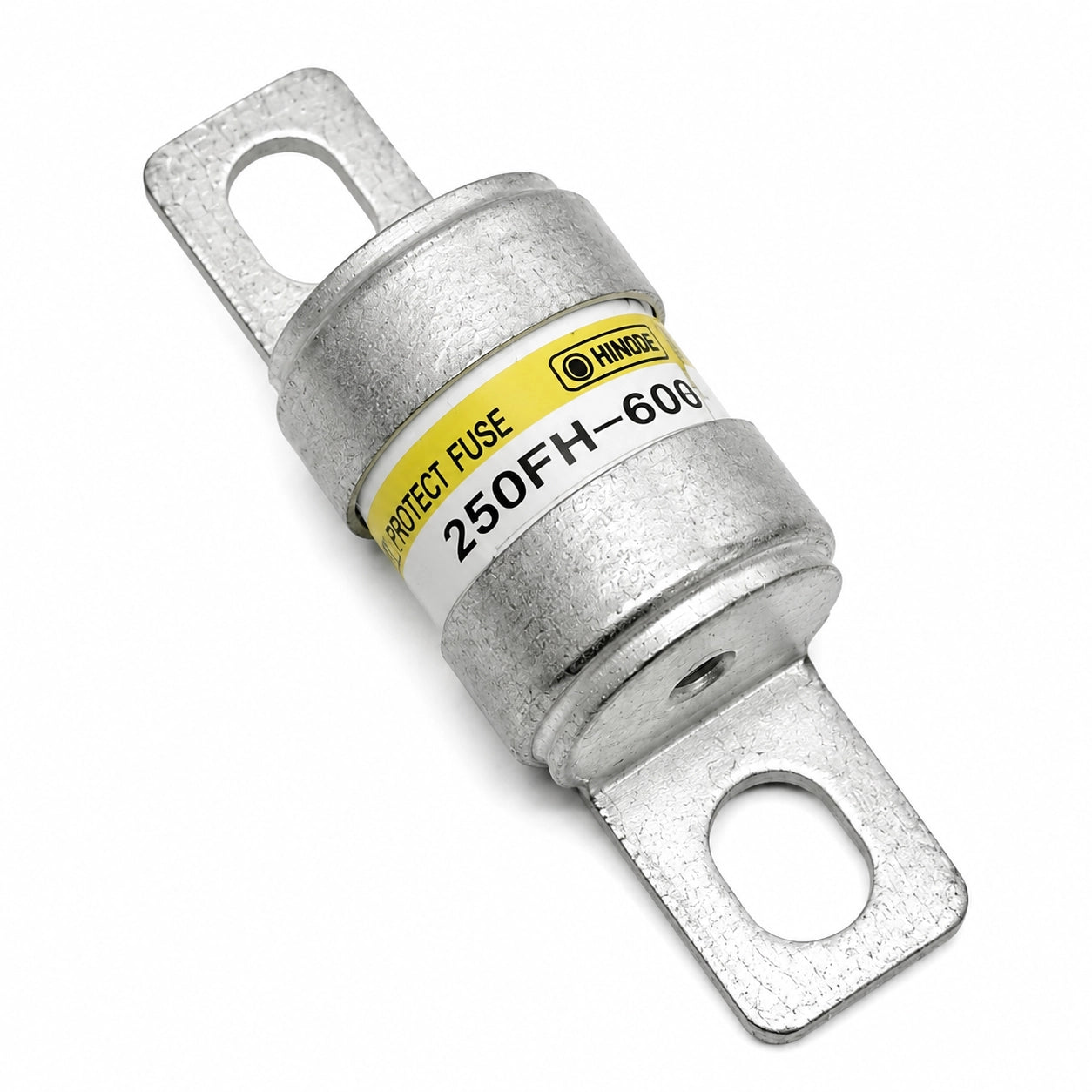

Hinode 250FH-600 Fast-Acting Fuse, 600A, 250V AC/DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 250FH-600 is a fast-acting fuse rated at 600A and 250V AC/DC. Verified product-specific data includes a 100kA breaking capacity, 33000 A²s pre-arcing I²t, and a non-indicating configuration for industrial circuit protection.
| Brand | Hinode |
| Manufacturer Part Number | 250FH-600 |
| Product Category | Fast-Acting Fuse |
| Rated Current | 600 A |
| Rated Voltage | 250 V AC/DC |
| Breaking Capacity | 100 kA AC/DC, L/R 10 ms |
| Pre-Arcing I²t | 33000 A²s |
| Total I²t at AC 250V, 100kA | 210000 A²s |
| Power Loss | 55 W |
| Recommended Conductor | 360 mm² |
| Indicator | Without indicator |
| Dimensions A × B × C | 86 × 60 × 30 mm |
| Mass | 360 g |
Typical applications include industrial AC and DC power circuits requiring fast-acting overcurrent protection. Verify the voltage, current, breaking capacity, conductor size, and mounting dimensions against the equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for the Hinode 250FH-600, using verified technical specifications to assist procurement review and technical alignment.
Send the manufacturer part number, required quantity, and application requirements to request a B2B quote and industrial sourcing support.
