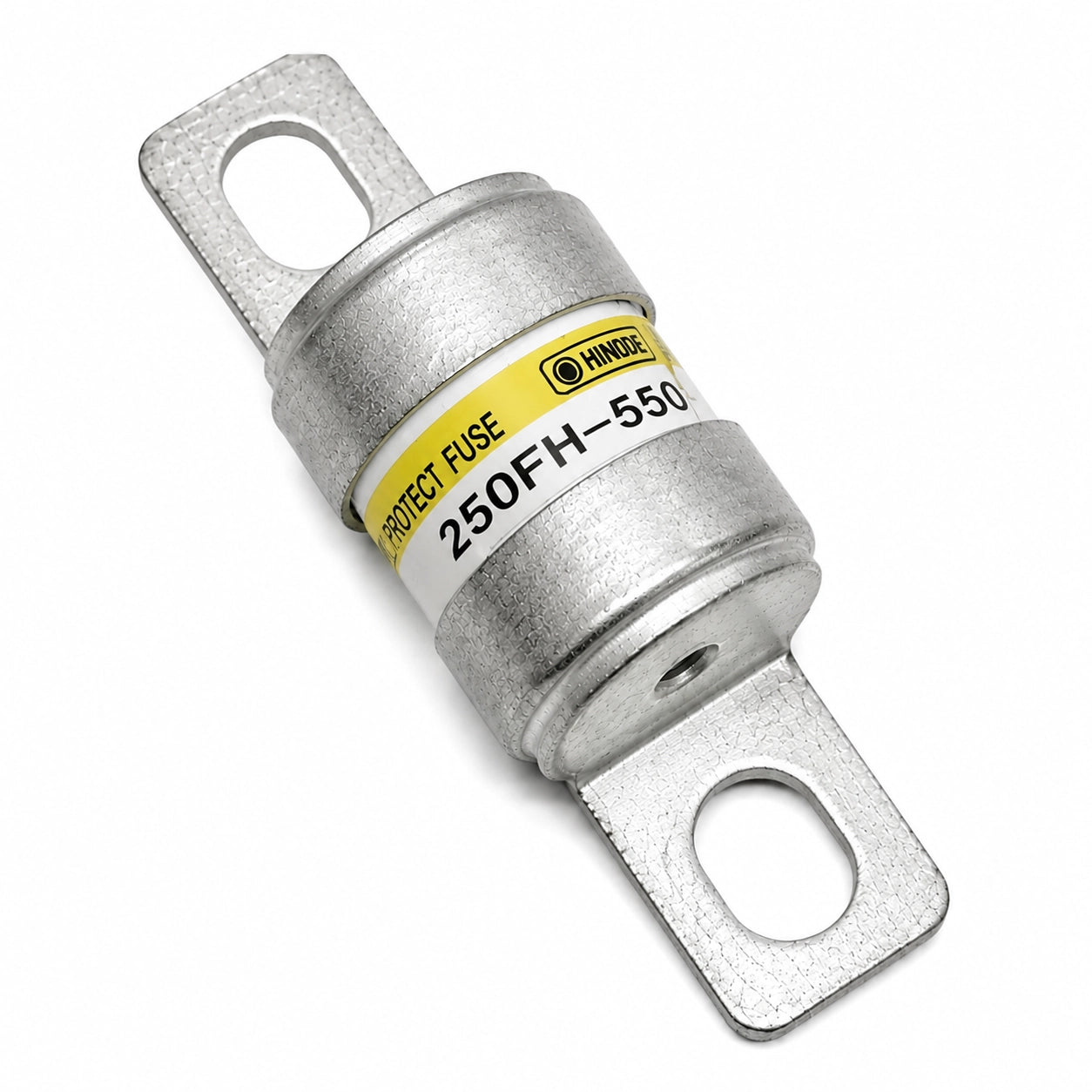

Hinode 250FH-550 Fast-Acting Fuse, 550A, 250V AC/DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hinode 250FH-550 is a fast-acting fuse rated at 550A and 250V AC/DC. Verified specifications include a 100kA breaking capacity (AC/DC, L/R 10 ms), 27000 A²s pre-arcing I²t, and 170000 A²s total I²t at AC 250V. This fuse is designed for industrial overcurrent protection in high-power electrical systems. 250fh.pdf
| Brand | Hinode |
| Manufacturer Part Number | 250FH-550 |
| Product Category | Fast-Acting Fuse |
| Rated Current | 550 A |
| Rated Voltage | 250 V AC/DC |
| Breaking Capacity | 100 kA AC/DC (L/R 10 ms) |
| Pre-Arcing I²t | 27000 A²s |
| Total I²t (AC250V-100kA) | 170000 A²s |
| Power Loss | 55 W |
| Recommended Conductor | 360 mm² |
| Dimensions (A × B × C) | 86 × 60 × 30 mm |
| Weight | 360 g |
Typical applications include industrial control panels, power distribution systems, rectifiers, DC circuits, converters, and electrical equipment requiring fast-acting overcurrent protection.
Apexon Supply provides B2B sourcing support for the Hinode 250FH-550 using verified technical specifications to assist procurement teams with replacement sourcing and technical alignment.
Submit the manufacturer part number, required quantity, and application requirements to request a B2B quote and industrial sourcing support.
