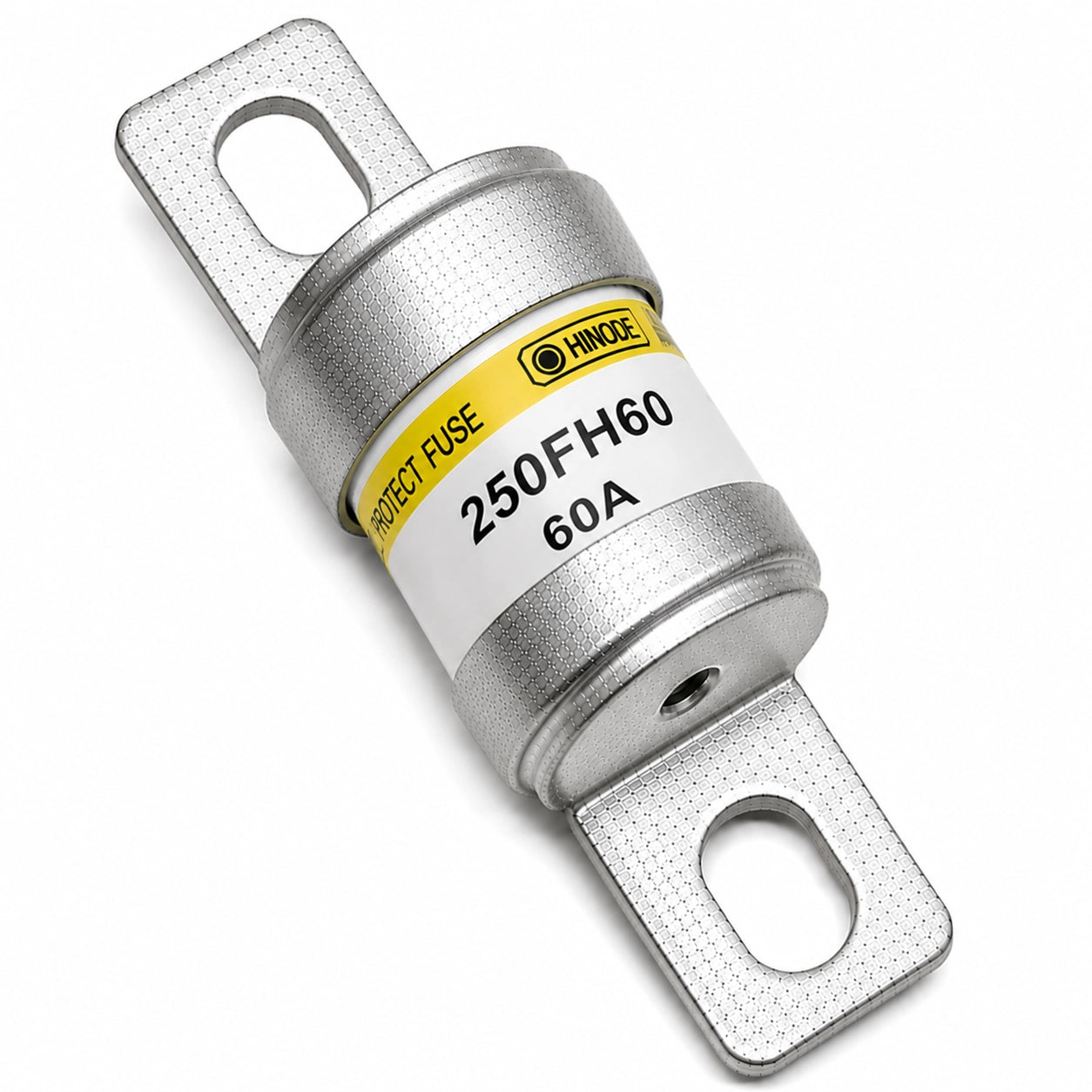

Hinode 250FH-60 Fast Acting Fuse, 60A, 250V AC/DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Hinode 250FH-60 is a 60A fast acting fuse rated for 250V AC/DC circuit protection. The fuse has a verified 100kA breaking capacity at 250V AC/DC with an L/R time constant of 10ms.
| Manufacturer | Hinode |
| Part Number | 250FH-60 |
| Fuse Type | Fast acting fuse |
| Rated Current | 60A |
| Rated Voltage | 250V AC/DC |
| Breaking Capacity | 100kA at 250V AC/DC, L/R 10ms |
| Pre-Arcing I²t | 220 A²s |
| Total I²t | 1,700 A²s at 250V AC, 100kA |
| Power Loss | 7W |
| Connection Conductor | 24 mm² |
| Dimensions | A 56 mm, B 42 mm, C 25 mm, D 27 mm, E 17.5 mm, F 8.5 mm, G 6.5 mm, T 1.8 mm, H 19 mm, W 12 mm |
| Mass | 30g |
Typical applications include industrial power and electrical circuits requiring fast interruption and high fault-current protection. Confirm the current rating, voltage rating, breaking capacity, dimensions, and mounting arrangement against the original equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for the Hinode 250FH-60, including procurement review, technical alignment, and industrial circuit-protection sourcing assistance.
Send the MPN, required quantity, and application requirements to request a B2B quote.
