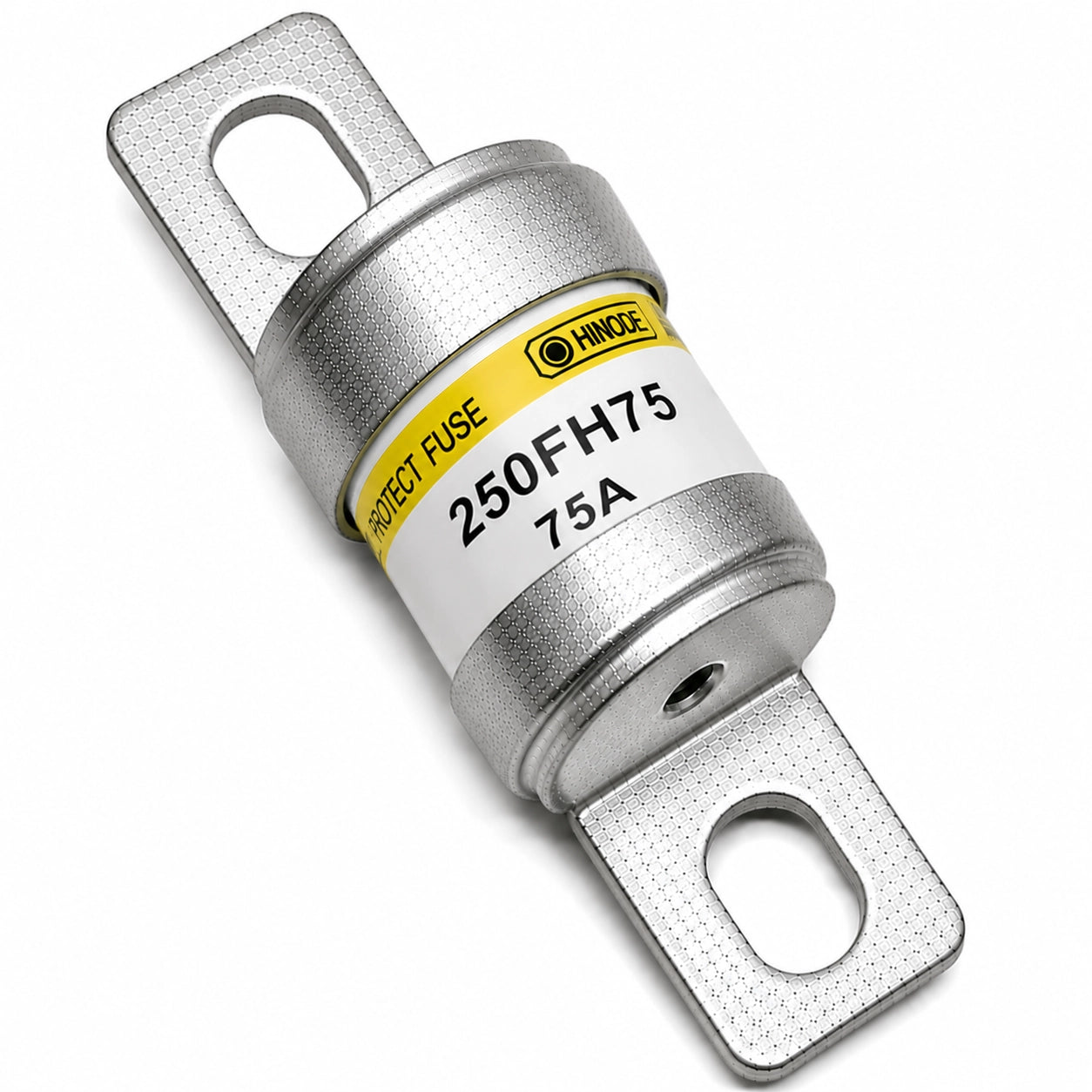

Hinode 250FH-75 Fast Acting Fuse, 75A, 250V AC/DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Hinode 250FH-75 is a 75A fast acting fuse rated for 250V AC/DC circuit protection. It has a verified breaking capacity of 100kA at 250V AC/DC with an L/R time constant of 10ms.
| Manufacturer | Hinode |
| Part Number | 250FH-75 |
| Fuse Type | Fast acting fuse |
| Rated Current | 75A |
| Rated Voltage | 250V AC/DC |
| Breaking Capacity | 100kA at 250V AC/DC, L/R 10ms |
| Pre-Arcing I²t | 300 A²s |
| Total I²t | 2,300 A²s at 250V AC, 100kA |
| Power Loss | 9W |
| Connection Conductor | 50 mm² |
| Dimensions | A 60 mm, B 42 mm, C 28 mm, D 32 mm, E 23 mm, F 8.5 mm, G 6.5 mm, T 2.5 mm, H 26 mm, W 18 mm |
| Mass | 57g |
Typical applications include industrial power and electrical circuits requiring fast interruption and high fault-current protection. Verify the current rating, voltage rating, breaking capacity, dimensions, and mounting arrangement before replacement.
Apexon Supply provides B2B sourcing and replacement support for the Hinode 250FH-75, including procurement review, technical alignment, and industrial circuit-protection sourcing assistance.
Send the MPN, required quantity, and application requirements to request a B2B quote.
