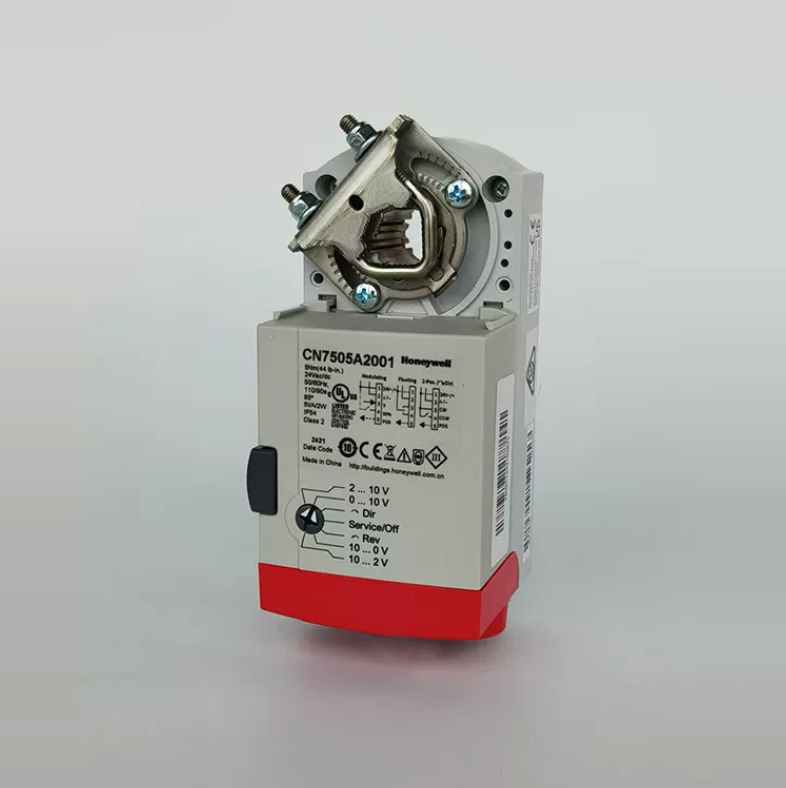

Honeywell CN7505A2001 Non-Spring Return Damper Actuator, 24Vac/dc Modulating, 5 Nm
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Honeywell CN7505A2001 is a highly reliable, non-spring return direct-coupled damper actuator designed for precise modulating control in commercial and industrial HVAC applications. Operating on a 24Vac/dc supply and delivering 5 Nm (44 lb-in) of torque, this robust unit is ideal for regulating air dampers, VAV units, and ventilation flaps up to 10 sq.ft. (0.93 sq.m). Featuring an IP54-rated enclosure, a universal shaft adapter, automatic declutch capability, and a built-in voltage feedback signal, it ensures accurate positioning, long-term durability, and seamless integration into enterprise building automation systems.
| Product ID (MPN) | CN7505A2001 |
| Actuator Type | Non-Spring Return, Direct-Coupled |
| Control Signal | Modulating ((0)2...10 Vdc) |
| Nominal Voltage | 24 Vac/dc, 50/60 Hz |
| Power Consumption | 5 VA / 2 W |
| Torque Rating | 5 Nm (44 lb-in) |
| Max Damper Area | Up to 10 sq.ft. (Seal-less dampers) |
| Rotation Stroke | 95° ± 3° |
| Runtime for 90° | 90s (dc/60Hz ac), 110s (50Hz ac) |
| Mounting Shaft (Round) | 3/8 in. ... 5/8 in. |
| Protection Standard | IP54 (as per EN 60529) / Type 1 Enclosure |
| Feedback Signal | Voltage Feedback Signal present |
| Internal Auxiliary Switches | None |
| Mechanical Lifetime | 60,000 full stroke cycles / 1.5 million repositions |
