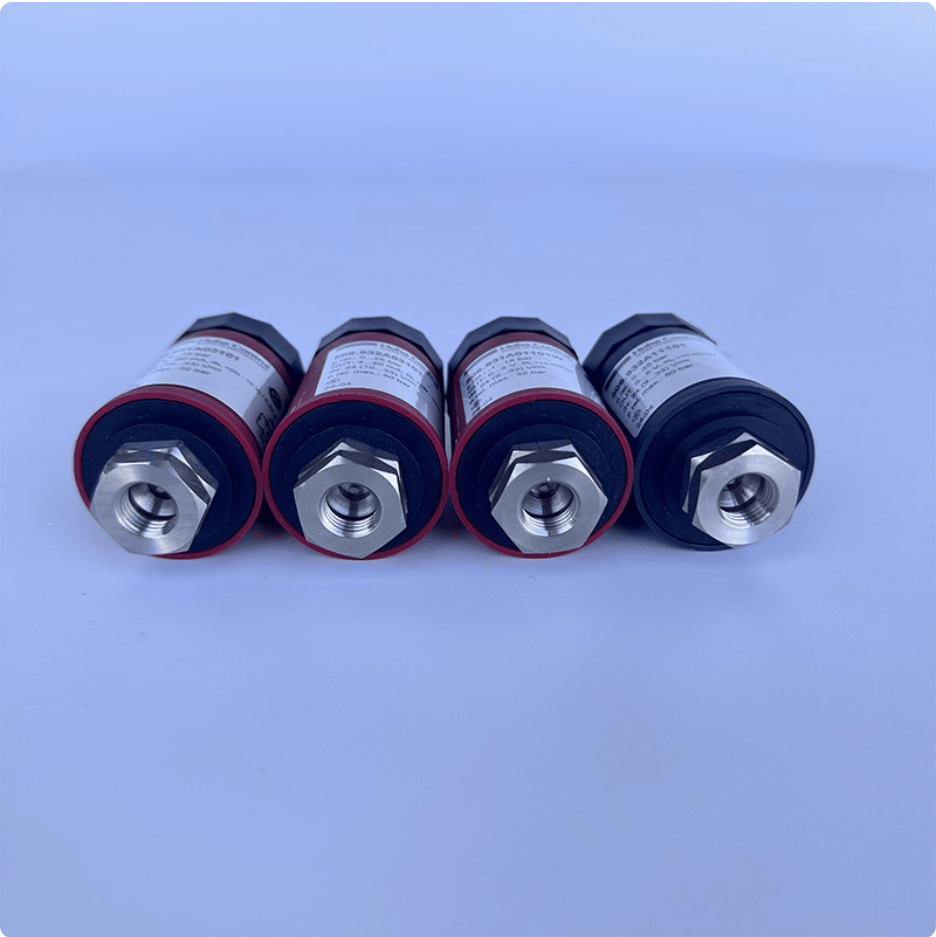

Huba Control 506.931A01101 Type 506 Pressure Transmitter, 0...16 bar, 0-5V Output
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Huba Control 506.931A01101 is a Type 506 OEM relative pressure transmitter for pressure measurement in industrial refrigeration applications. This configuration is identified with a 0...16 bar pressure range and 0...5 V output signal, using robust ceramic sensor technology and a compact construction for technical replacement review.
| Product ID / MPN | 506.931A01101 |
| Brand / Series / Category | Huba Control Type 506 Pressure Transmitter |
| Pressure Range | 0...16 bar |
| Output / Power Supply | 0...5 V, 9.0...33 VDC |
| Load | > 10 kOhm / < 100 nF |
| Current Consumption | < 5 mA |
| Medium | Refrigerants |
| Medium / Ambient Temperature | -40...+80 degC |
| Response Time | < 5 ms |
| Protection Standard | IP65 |
| Sensor Material | Ceramic Al2O3 96% |
| Standards / Certifications | CE conformity acc. EN 61326-2-3 |
| Installation Notes | Recommended pressure connection downwards |
Typical applications include pressure monitoring and measurement in industrial refrigeration systems using refrigerants, where verified range, output signal, power supply, connection configuration, and environmental ratings should be reviewed against the original equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for Huba Control 506.931A01101 pressure transmitters. Procurement teams can use the verified specifications on this page to support technical alignment, part-number confirmation, and replacement sourcing review.
Send the MPN, required quantity, and application requirements to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
