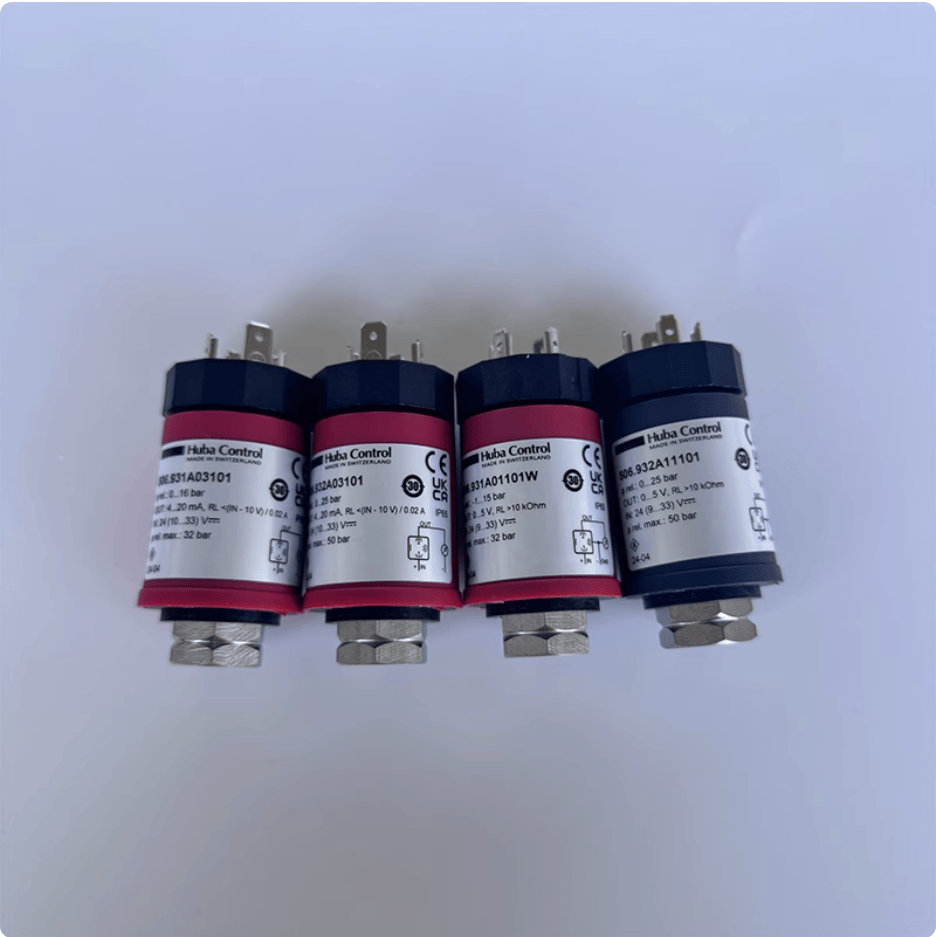

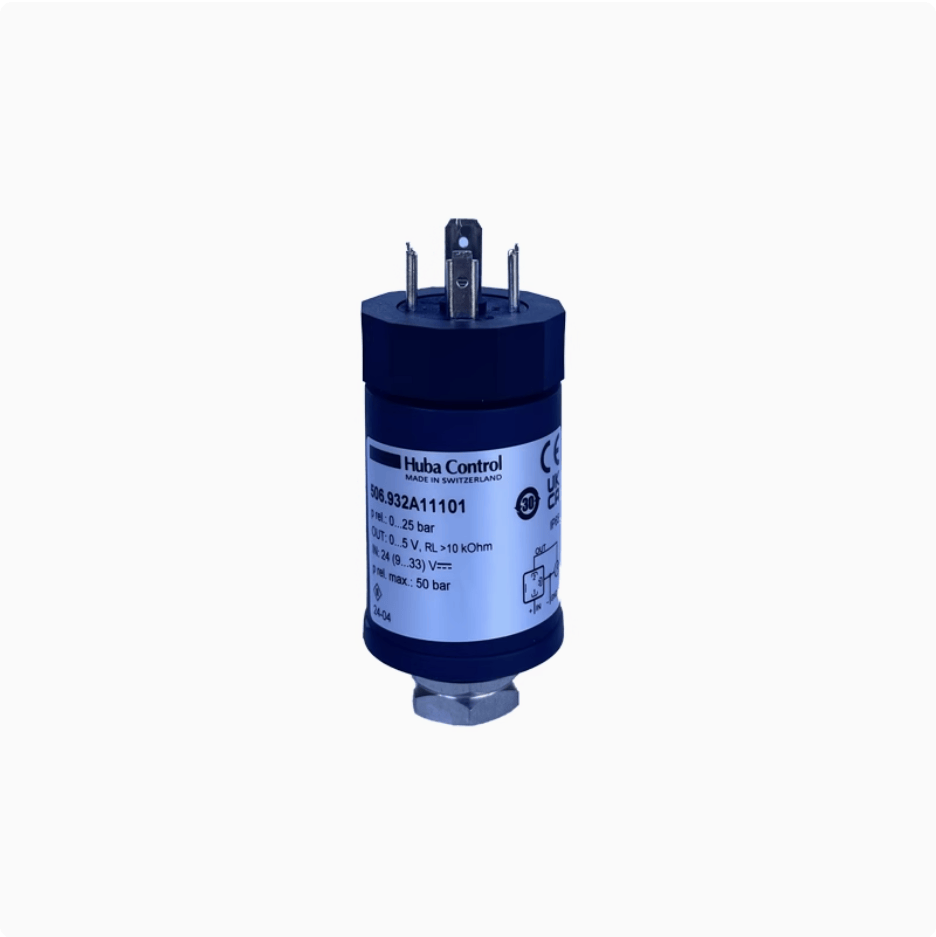

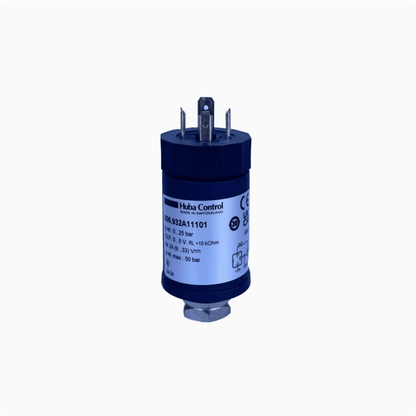

Huba Control 506.932A11101 Type 506 Pressure Transmitter, 0...25 bar, 0-5V Output
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Huba Control 506.932A11101 is a Type 506 OEM relative pressure transmitter for pressure measurement in industrial refrigeration applications. This configuration is identified with a 0...25 bar pressure range and 0...5 V output signal, using robust ceramic sensor technology for technical replacement review.
| Product ID / MPN | 506.932A11101 |
| Brand / Series / Category | Huba Control Type 506 Pressure Transmitter |
| Pressure Range | 0...25 bar |
| Output / Power Supply | 0...5 V, 9.0...33 VDC |
| Load | > 10 kOhm / < 100 nF |
| Current Consumption | < 5 mA |
| Electrical Connection | Connector DIN EN 175301-803-A |
| Pressure Connection | Inside thread 7/16 - 20 UNF Schrader |
| Medium | Refrigerants |
| Medium / Ambient Temperature | -40...+80 degC |
| Response Time | < 5 ms |
| Protection Standard | IP65 |
| Sensor Material | Ceramic Al2O3 96% |
| Standards / Certifications | CE conformity acc. EN 61326-2-3 |
| Installation Notes | Recommended pressure connection downwards |
Typical applications include pressure measurement and monitoring in industrial refrigeration equipment where refrigerant compatibility, pressure range, 0...5 V output, electrical connection, and pressure connection must match the original system requirements.
Apexon Supply provides B2B sourcing and replacement support for Huba Control 506.932A11101 pressure transmitters. Procurement teams can use the verified specifications on this page to support part-number confirmation, technical alignment, and replacement sourcing review.
Send the MPN, required quantity, and application requirements to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
