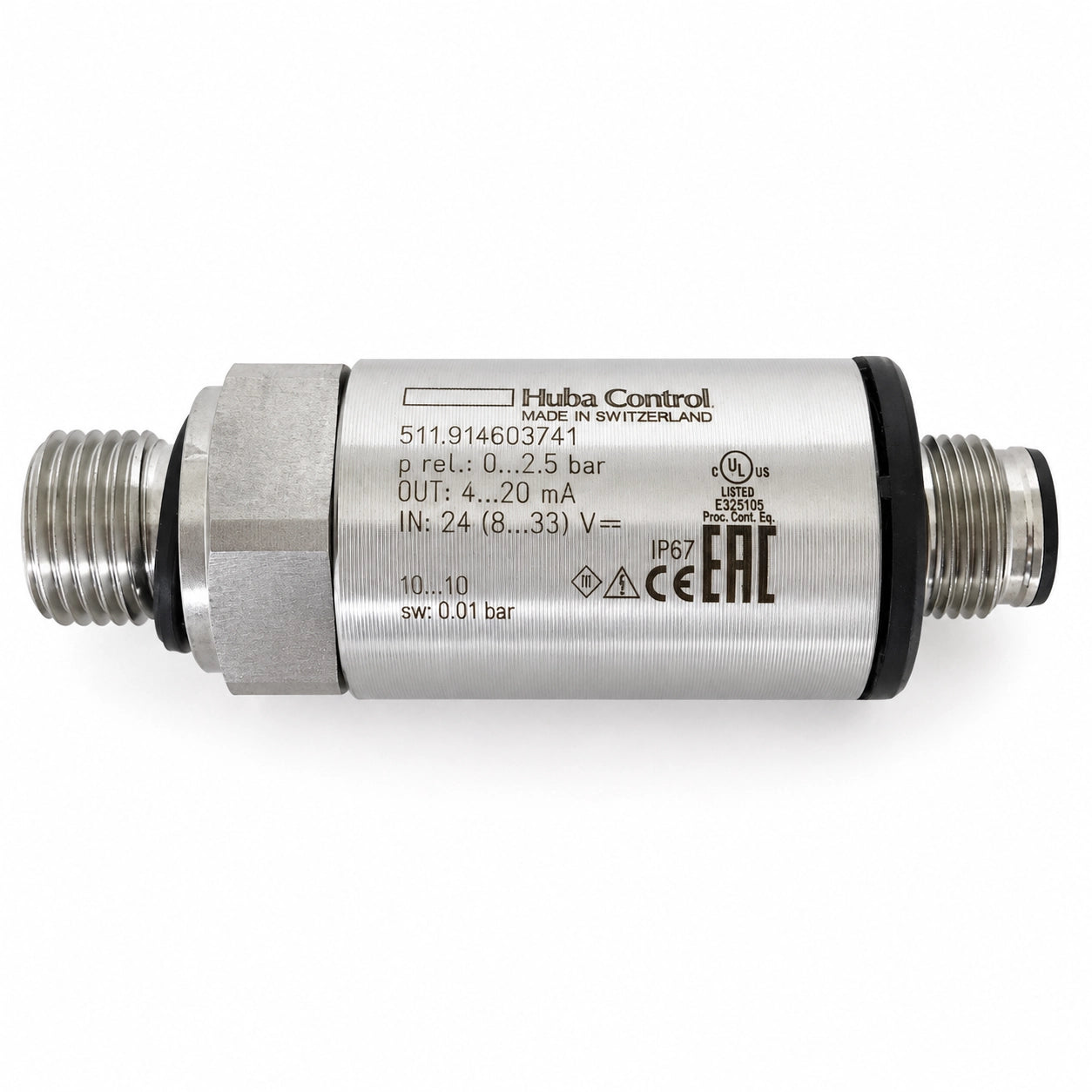

Huba Control 511.914603741 Pressure Sensor Transmitter, 0-2.5 bar, 4-20 mA
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Huba Control 511.914603741 is a Type 511 OEM relative pressure sensor transmitter for industrial pressure measurement and process monitoring. This configuration is identified with a 0 ... 2.5 bar pressure range, 4 ... 20 mA output, 8.0 ... 33 VDC supply, M12x1 metal-thread electrical connection, G ¼ outside thread pressure connection sealed at back to ISO 1179-2 / DIN 3852-E, and FPM sealing material rated -40 ... +150 ºC.
| Product ID / MPN | 511.914603741 |
| Brand / Series / Category | Huba Control Type 511 pressure sensor transmitter |
| Pressure Mode | Relative |
| Pressure Range | 0 ... 2.5 bar |
| Output / Power Supply | 4 ... 20 mA, 8.0 ... 33 VDC |
| Electrical Connection | M12x1 metal thread connector |
| Pressure Connection | G ¼ outside thread, sealed at back, ISO 1179-2 / DIN 3852-E |
| Medium | Liquids and gases |
| Case Material | Stainless steel 1.4305 / AISI 303 |
| Sensor Material | Ceramic Al2O3, 96% |
| Sealing Material | FPM fluoro elastomer, -40 ... +150 ºC; UL max. 125 ºC |
| Protection Standard | IP67 for all versions except Mini DIN |
| Response Time | < 2 ms, typical 1 ms |
| Tolerable Overload / Rupture Pressure | 3.0 x full scale for pressure ranges below 6 bar |
| Installation Arrangement | Unrestricted |
| Standards / Certifications | CE conformity acc. EN 61326-2-3; UL acc. Standard 61010-1 |
This pressure transmitter is typically used for pressure measurement, monitoring, and process control in industrial equipment handling compatible liquids or gases. It supports procurement review for OEM equipment, MRO maintenance, control panels, machinery systems, and replacement pressure sensing applications.
Apexon Supply provides B2B sourcing and replacement support for Huba Control 511.914603741 pressure sensor transmitters. Buyers should verify pressure range, output signal, supply voltage, process connection, electrical connector, sealing material, and system compatibility before replacement.
Send the MPN, required quantity, target application, and any equipment nameplate details for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
