Huba Control 511.943602745 Pressure Transmitter, 0-250 bar, 0-10 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

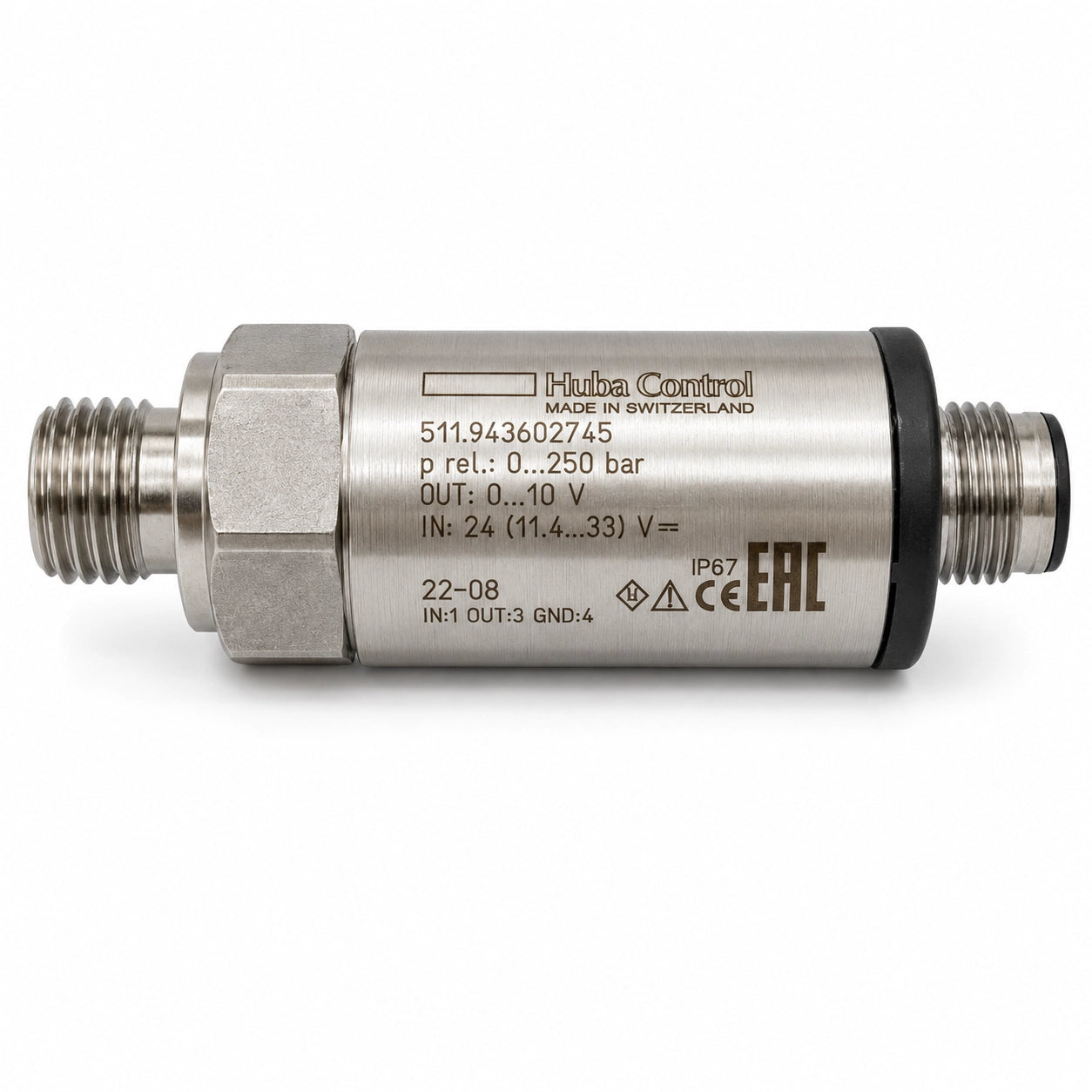

Huba Control 511.943602745 is an industrial pressure transmitter for relative pressure measurement from 0 ... 250 bar with a 0 ... 10 V output signal. The product label verifies 24 V supply with an 11.4 ... 33 V operating range, IP67 protection, and terminal assignment for IN, OUT, and GND connections.
| Brand | Huba Control |
| Product ID | 511.943602745 |
| Product Category | Pressure Transmitter |
| Pressure Range | 0 ... 250 bar |
| Pressure Mode | Relative |
| Output Signal | 0 ... 10 V |
| Power Supply | 24 V (11.4 ... 33 V) |
| Protection Standard | IP67 |
| Terminal Assignment | IN: 1; OUT: 3; GND: 4 |
| Markings | CE, EAC |
Typical applications include industrial pressure measurement, monitoring, and process control where a 0 ... 250 bar relative pressure range and 0 ... 10 V signal output are required.
Apexon Supply supports B2B sourcing, replacement sourcing, and technical alignment for Huba Control pressure transmitters used in maintenance, automation, and measurement systems.
Send the MPN, required quantity, and application requirements to request RFQ support and confirm technical alignment for this pressure transmitter.
