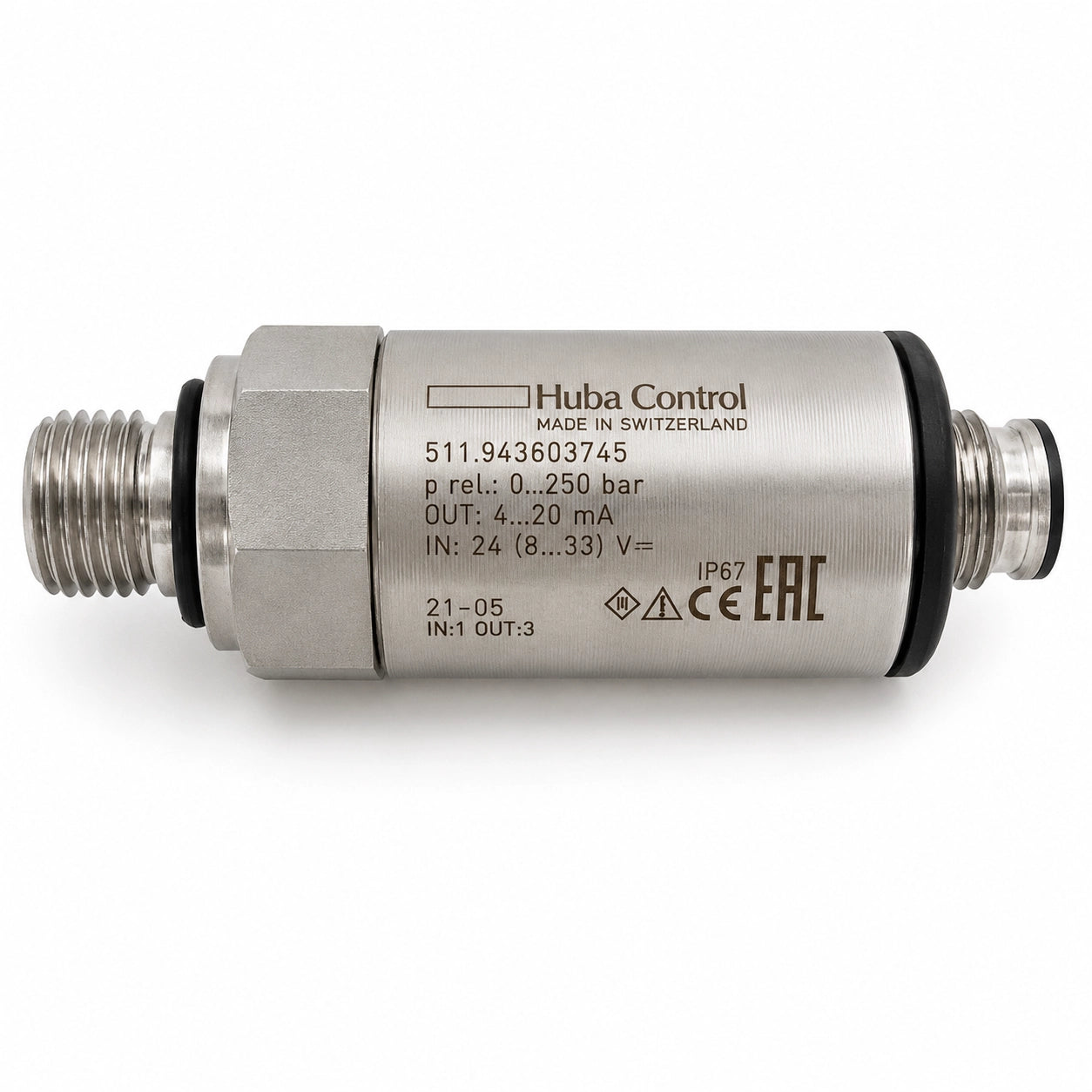

Huba Control 511.943603745 0-250Bar 4-20mA Pressure Sensor Transmitter

$140.00 USD
$140.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

The Huba Control 511.943603745 is a high-reliability relative pressure transmitter designed for precision monitoring in industrial hydraulic and pneumatic systems up to 250 bar. Engineered with a ceramic sensing element and a media stop system, this Type 511 sensor ensures superior electromagnetic compatibility (EMC) and signal stability across a wide temperature range.

Product ID (MPN) 511.943603745
Pressure Range 0 ... 250 bar
Pressure Mode Relative
Output Signal 4 ... 20 mA (2-wire)
Power Supply 8.0 ... 33 VDC
Sealing Material FPM (Fluoro elastomer)
Electrical Connection Swift Connector
Pressure Connection G 1/4 with Media Stopper
Protection Standard IP67
Rupture Pressure 625 bar (2.5 x fs)
