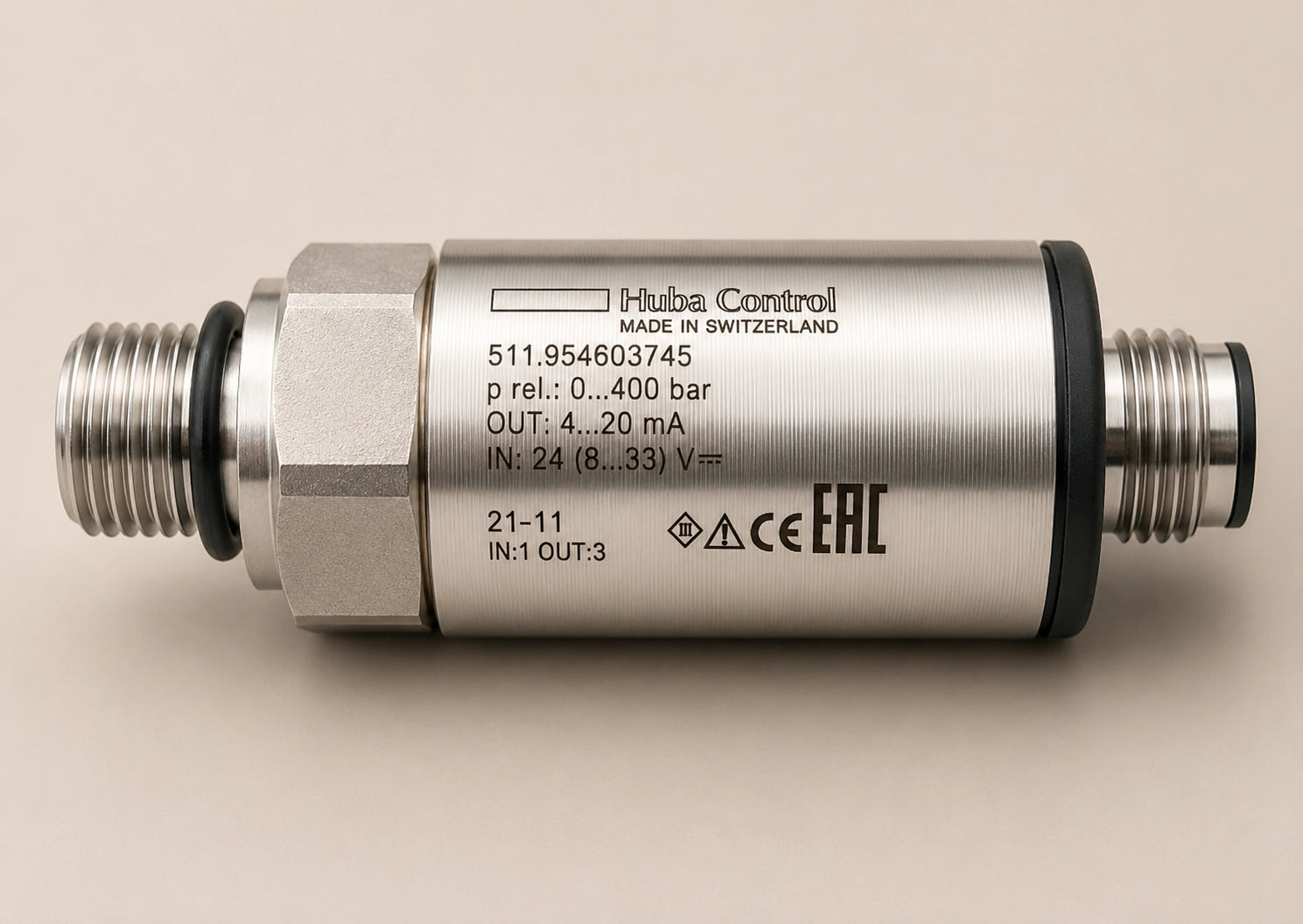

Huba Control 511.954603745 0-400Bar 4-20mA Pressure Sensor Transmitter

$140.00 USD
$140.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

The Huba Control 511.954603745 is a high-performance relative pressure transmitter designed for high-pressure industrial hydraulic systems up to 400 bar. This Type 511 model features a specialized media stop system and a ceramic sensing element, providing excellent long-term stability and resistance to pressure peaks in demanding fluid power applications.

Product ID (MPN) 511.954603745
Pressure Range 0 ... 400 bar
Pressure Mode Relative
Output Signal 4 ... 20 mA (2-wire)
Power Supply 8.0 ... 33 VDC
Sealing Material FPM (Fluoro elastomer)
Electrical Connection Swift Connector
Pressure Connection G 1/4 with Media Stopper
Protection Standard IP67
Tolerable Overload 1000 bar (2.5 x fs)
