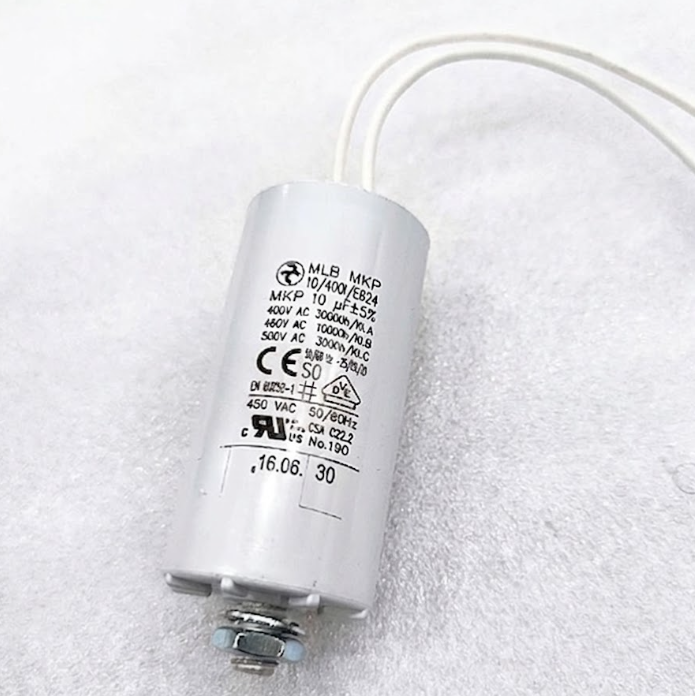

Hydra MLB MKP 10/400I/E624 Motor Run Capacitor, 10uF 400VAC-500VAC, ±5%
Regular price
$55.00 USD
Regular price
Sale price
$55.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hydra MLB MKP 10/400I/E624 is a high-capacity metallized polypropylene motor run capacitor designed for continuous duty in industrial AC motor applications. Engineered for durability and safety, it features a self-healing dielectric and an S0 safety rating, providing reliable phase-shifting and motor starting for pumps, compressors, and heavy-duty ventilation units.
| Product ID (MPN) | MLB MKP 10/400I/E624 |
| Capacitance | 10 µF |
| Tolerance | ±5% (J) |
| Rated Voltage (Class A) | 400 VAC (30,000h) |
| Rated Voltage (Class B) | 460 VAC (10,000h) |
| Rated Voltage (Class C) | 500 VAC (3,000h) |
| Frequency | 50/60 Hz |
| Dimensions | Ø 35 mm x 68 mm |
| Lead Length | 200 mm |
| Safety Class | S0 (EN 60252-1) |
| Dielectric Material | Metallized Polypropylene (MKP) |
