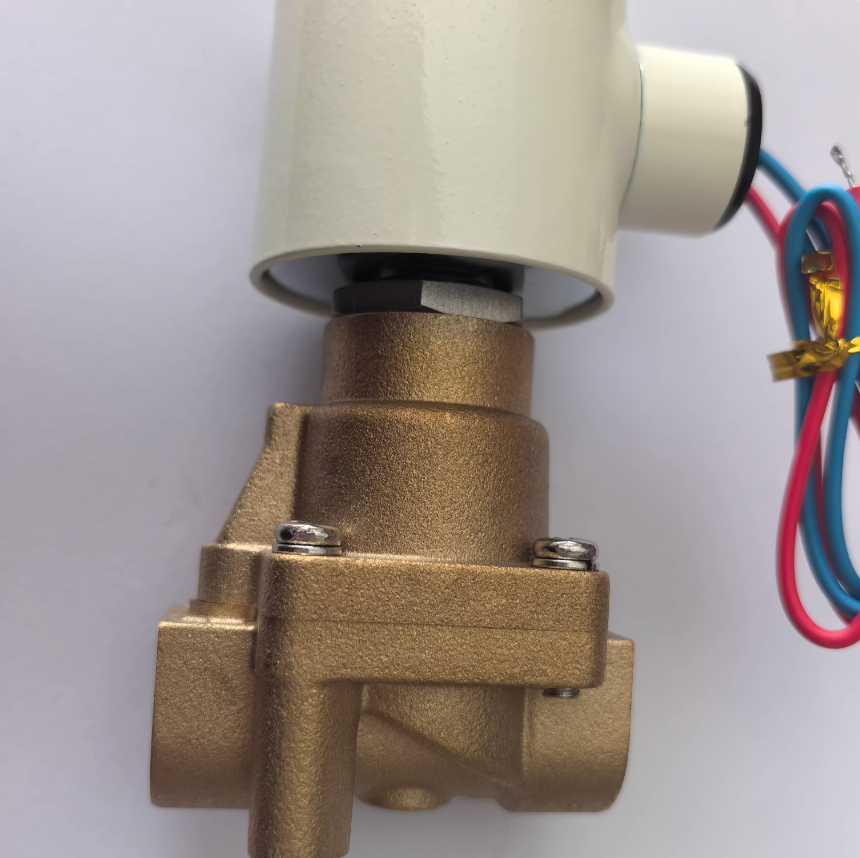

Hyoshin HPW102 DC24V HPW Series 2-Port Solenoid Valve, N.C., Rc(PT) 1/4, 24 VDC
Regular price
$135.00 USD
Regular price
Sale price
$135.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hyoshin HPW102 DC24V is a versatile 2-port, normally closed (N.C.) solenoid valve designed to deliver precise fluid and pneumatic control in demanding industrial environments. Featuring a durable brass body and a hybrid diaphragm architecture that utilizes both pilot and direct-acting principles, this 24 VDC valve provides exceptional reliability when managing fluid systems involving air, water, clean oil, and inert gases. Its fire-resistant construction and tight integration capabilities make it an ideal choice for medical instrumentation, commercial water purifiers, and vacuum packaging machines.
| Product ID (MPN) | HPW102 DC24V |
| Valve Configuration | 2-Port, Normally Closed (N.C.) |
| Actuation Type | Diaphragm Type (Pilot/Direct Combination) |
| Applicable Fluid | Air, Water, Clean Oil, Inert Gas |
| Rated Voltage | 24 VDC |
| Fluid Pressure Range (DC) | 0.1 ~ 7 kgf/cm² (0.01 ~ 0.7 MPa) |
| Port Type & Size | Rc(PT) 1/4 |
| Orifice Size | Ø10 mm |
| Body Material | Brass |
| Seal Material | NBR (Standard) |
| Fluid Temperature Rating | 0 ~ 60°C |
| Power Consumption | 14 W |
| Electrical Connection | Console box (Standard) |
| Coil Insulation Class | Class B |
| Allowable Voltage Fluctuation | ±5% (DC) |
| Weight | 0.53 kg |
