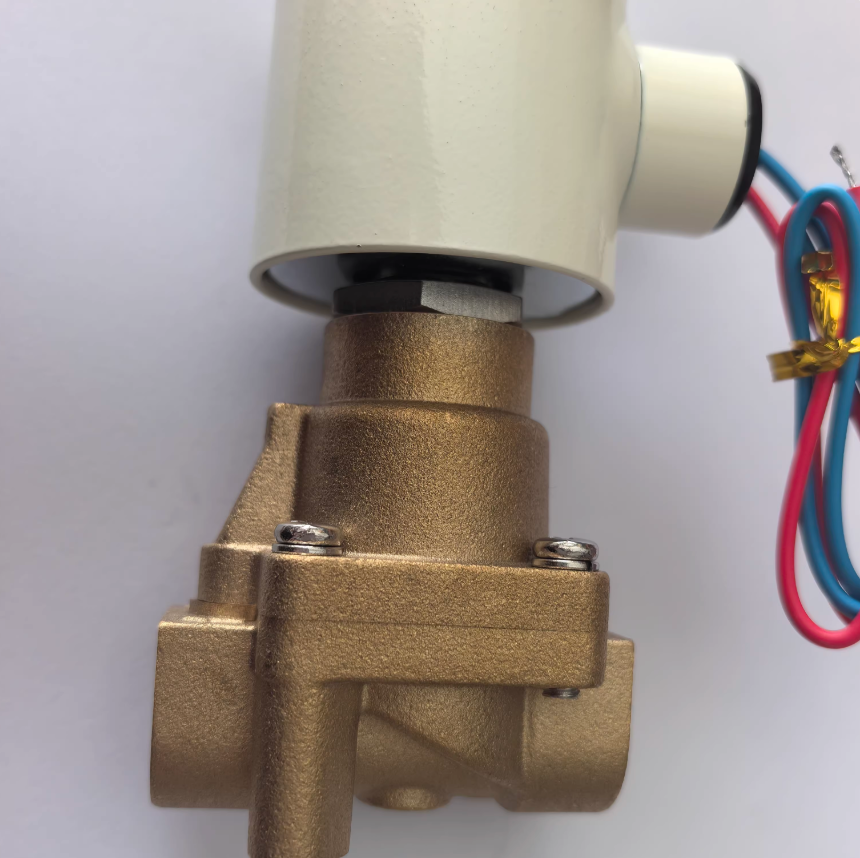

Hyoshin HPW103 AC220V HPW Series 2-Port Solenoid Valve, N.C., Rc(PT) 3/8, 220 VAC
Regular price
$135.00 USD
Regular price
Sale price
$135.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hyoshin HPW103 AC220V is a highly robust 2-port, normally closed (N.C.) solenoid valve engineered for dynamic fluid and pneumatic control across industrial environments. Utilizing a unique diaphragm design that merges the benefits of pilot and direct-acting mechanisms, this 220 VAC valve ensures stable flow management for air, water, clean oil, and inert gases. Built with a durable brass body and a fire-resistant structure, it delivers exceptional longevity and steady performance in critical systems such as industrial water purifiers, vacuum packaging machines, and medical equipment.
| Product ID (MPN) | HPW103 AC220V |
| Valve Configuration | 2-Port, Normally Closed (N.C.) |
| Actuation Type | Diaphragm Type (Pilot/Direct Combination) |
| Applicable Fluid | Air, Water, Clean Oil, Inert Gas |
| Rated Voltage | 220 VAC |
| Fluid Pressure Range (AC) | 0 ~ 10 kgf/cm² (0 ~ 1 MPa) |
| Port Type & Size | Rc(PT) 3/8 |
| Orifice Size | Ø10 mm |
| Body Material | Brass |
| Seal Material | NBR (Standard) |
| Fluid Temperature Rating | 0 ~ 60°C |
| Power Consumption | 14 W |
| Coil Insulation Class | Class B |
| Allowable Voltage Fluctuation | ±10% (AC) |
| Weight | 0.53 kg |
