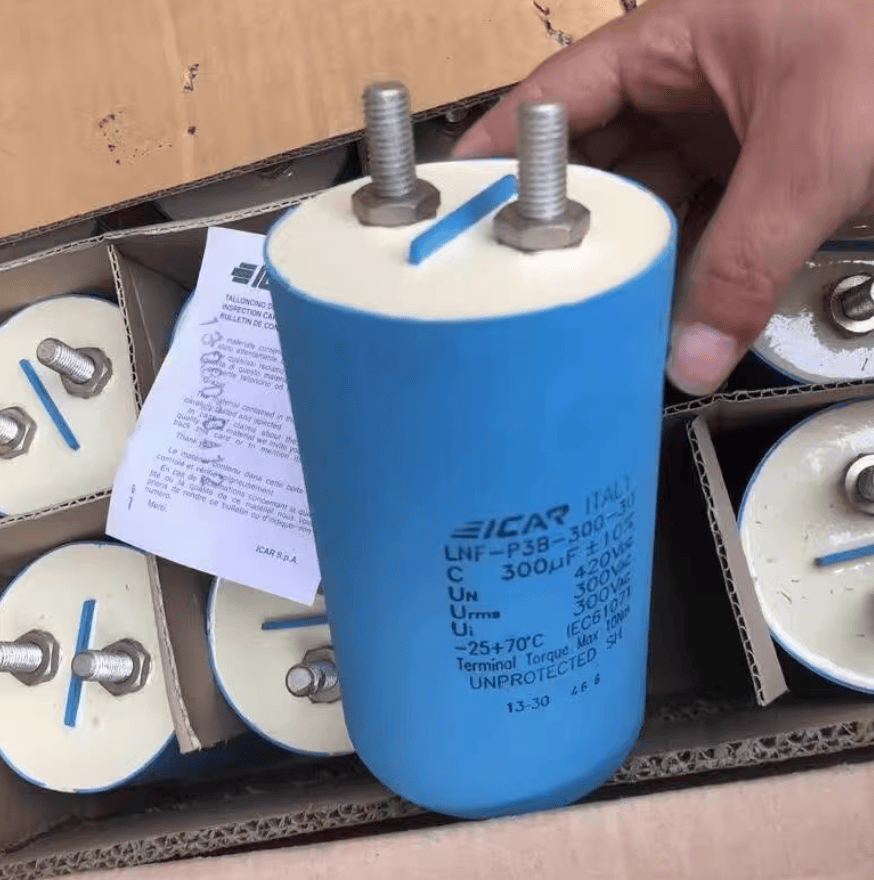

ICAR LNF-P3B-300-30 Power Film Capacitor, 300 µF, 420 Vdc
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ICAR LNF-P3B-300-30 is an AC filter capacitor from the LNF series with a rated capacitance of 300 µF, rated RMS voltage (Urms) of 300 V, and rated repetitive peak voltage (UN) of 420 V. This dry-type metallized polypropylene film capacitor is designed for AC filtering applications.
| Model | LNF-P3B-300-30 |
| Rated Capacitance | 300 µF |
| Rated RMS Voltage (Urms) | 300 V |
| Rated Repetitive Peak Voltage (UN) | 420 V |
| Maximum RMS Current (Imax) | 40 A |
| Self-Inductance (Ls) | 134 nH |
| Maximum dv/dt | 30 V/µs |
| Series Resistance (Rs) | 2.11 mΩ |
| Diameter | 85 mm |
| Terminal Thread | M10 |
| Length | 140 mm |
The ICAR LNF series is designed for output AC filtering in UPS and inverter systems, with typical applications including industrial drives and traction equipment.
Apexon Supply provides B2B sourcing and replacement support for ICAR LNF-P3B-300-30, helping procurement teams compare verified electrical and dimensional parameters for technical alignment.
Submit ICAR LNF-P3B-300-30, the required quantity, and application requirements to request a B2B quote for sourcing support.
