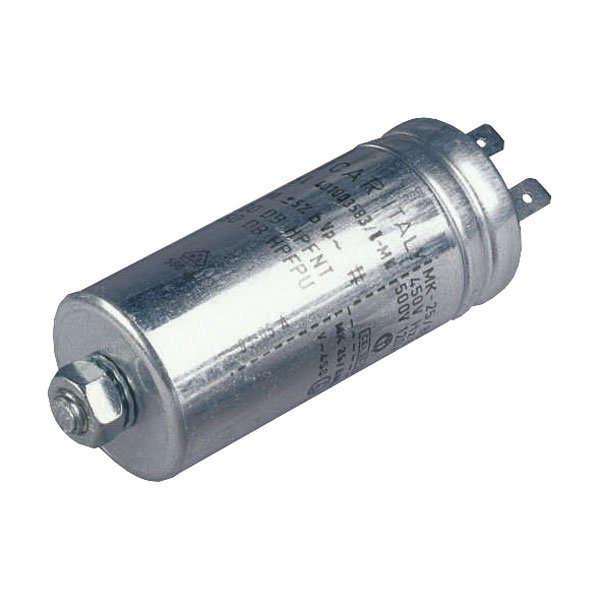

ICAR MLR25L401003583 / I-MK SH MLR 25 L Motor Run Capacitor, 10µF, 450V, Class S2
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ICAR MLR25L401003583 (Order Code: I-MK SH) is a premium MLR 25 L series motor run capacitor designed for single-phase asynchronous motors and demanding industrial applications. Featuring a self-healing metallized polypropylene film dielectric housed in a robust aluminium case with an integrated overpressure safety disconnector (Class S2), this 10µF capacitor ensures maximum reliability and fail-safe protection, offering a Class A 30,000-hour operational lifespan at 400V. It is equipped with a bottom mounting stud for secure and stable installation in high-vibration environments.
| Product ID (MPN) | MLR25L401003583 |
| Order Code | I-MK SH |
| Product Series | MLR 25 L 40 |
| Capacitance | 10 µF |
| Capacitance Tolerance | ±5% |
| Rated Voltage & Life (400V) | 400V AC (Class A 30,000 h) |
| Rated Voltage & Life (450V) | 450V AC (Class B 10,000 h) |
| Rated Voltage & Life (500V) | 500V AC (Class C 3,000 h) |
| Frequency | 50/60 Hz |
| Mounting | Bottom Stud with Nut |
| Dielectric Material | Metallized Polypropylene Film |
| Housing Material | Aluminium |
| Safety Class | S2 (Internally Protected, 10,000 AFC) |
| Climatic Category | 40/085/21 |
| Dimensions (Diameter x Length) | 35 mm x 101 mm |
