ICAR MLR25L40803578 Motor Run Capacitor, 8µF, 450V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

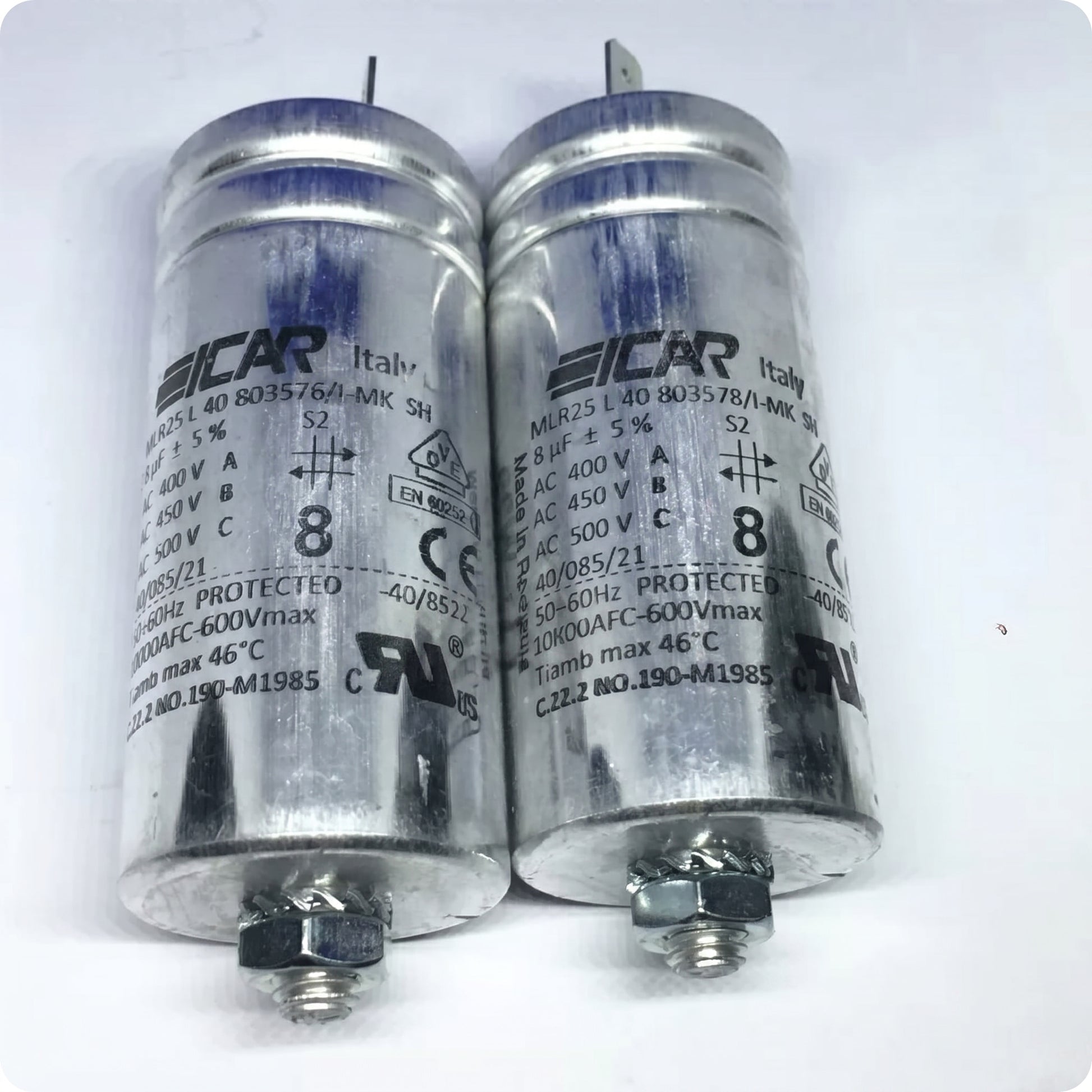

ICAR MLR25L40803578 is an MLR 25 L 40 series motor run capacitor for single-phase asynchronous motor and industrial AC electrical applications. This ICAR capacitor is rated at 8 µF with ±5% tolerance, 400V AC Class A life rating of 30,000 hours, 450V AC Class B life rating of 10,000 hours, and 500V AC Class C life rating of 3,000 hours.
| Product ID / MPN | MLR25L40803578 |
| Secondary ID | I-MK SH |
| Brand / Series | ICAR MLR 25 L 40 |
| Product Category | Motor Run Capacitor |
| Capacitance | 8 µF |
| Capacitance Tolerance | ±5% |
| Rated Voltage & Life, Class A | 400V AC - 30,000 h |
| Rated Voltage & Life, Class B | 450V AC - 10,000 h |
| Rated Voltage & Life, Class C | 500V AC - 3,000 h |
| Frequency | 50/60 Hz |
| Connection Type | 6.3 mm Double Faston Terminals |
| Mounting | Bottom Stud with Nut |
| Dielectric Material | Metallized Polypropylene Film |
| Housing Material | Aluminium |
| Safety Class | S2, Internally Protected, 10,000 AFC |
| Climatic Category | 40/085/21 |
| Dimensions | 35 mm Diameter x 78 mm Length |
This motor run capacitor is typically used in single-phase asynchronous motors, industrial machinery, HVAC equipment, pumps, compressors, and AC motor maintenance applications where capacitance, voltage-life class, S2 safety class, 6.3 mm Faston connection, stud mounting, and physical dimensions must align with the original equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for ICAR MLR25L40803578 capacitors and related power and energy components. Verified specifications should be reviewed against the equipment documentation, terminal configuration, mounting requirements, available panel space, and application voltage before procurement.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support. Most qualified RFQs receive a response or quote within 12 hours.
