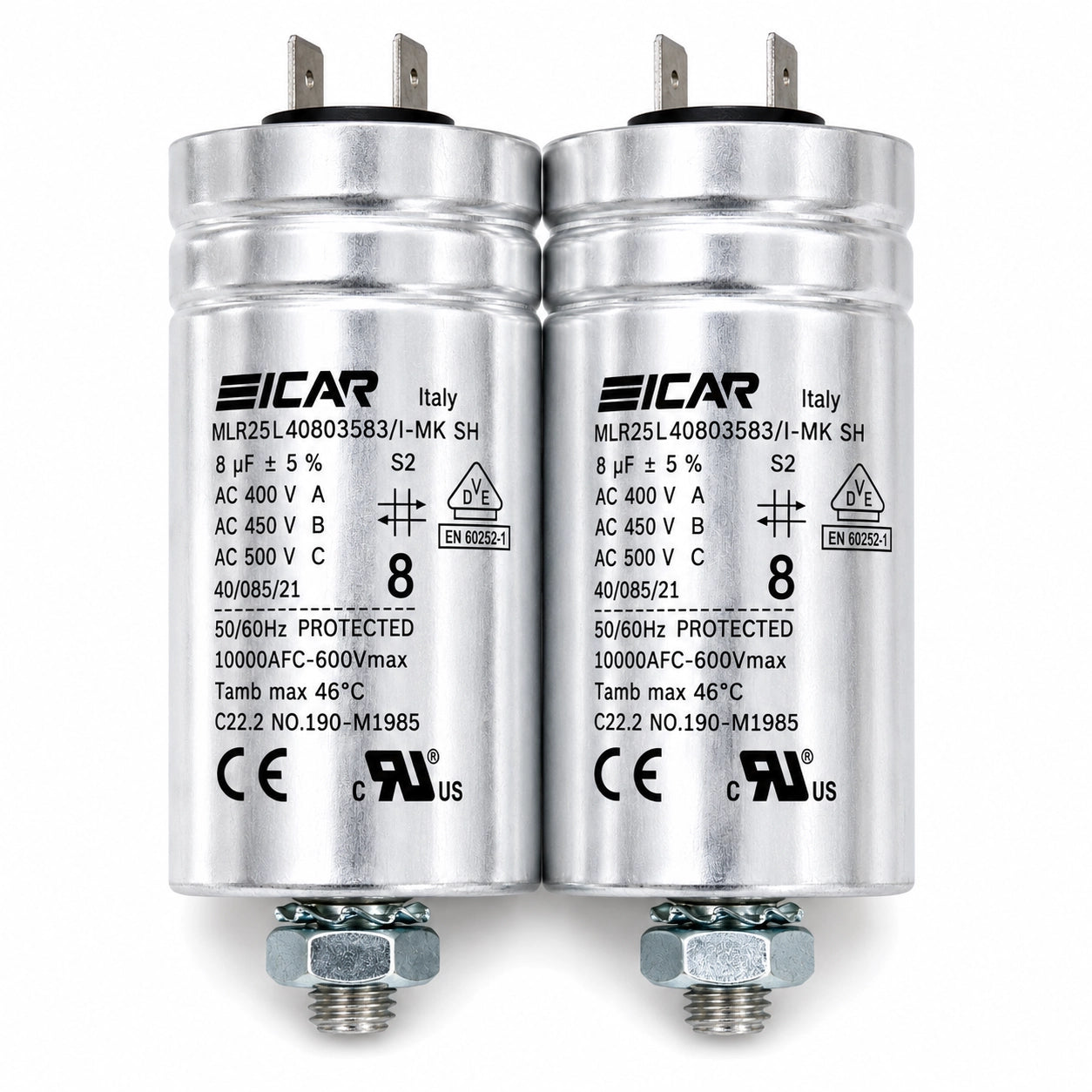

ICAR MLR25L40803583 Motor Run Capacitor, 8 µF, 450V AC Class S2
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ICAR MLR25L40803583 is an MLR 25 L 40 series motor run capacitor with 8 µF capacitance, 450V AC rated voltage, and Class S2 internal protection. It uses metallized polypropylene film dielectric in an aluminium housing and is identified with order code I-MK SH for procurement review and replacement sourcing.
| Product ID | MLR25L40803583 |
| Order Code | I-MK SH |
| Series | MLR 25 L 40 |
| Capacitance | 8 µF |
| Capacitance Tolerance | ±5% |
| Rated Voltage and Life | 400V AC Class A 30,000 h; 450V AC Class B 10,000 h; 500V AC Class C 3,000 h |
| Frequency | 50/60 Hz |
| Dielectric Material | Metallized polypropylene film |
| Housing Material | Aluminium |
| Safety Class | S2, internally protected, 10,000 AFC |
| Climatic Category | 40/085/21 |
This motor run capacitor is used for single-phase asynchronous motor applications and industrial electrical systems where capacitance, voltage rating, safety class, and environmental category must match the equipment requirement.
Apexon Supply supports B2B sourcing, replacement review, and technical alignment for ICAR capacitor requirements using verified identifiers and product-specific specifications.
Send the MPN, order code, required quantity, and application requirements to request a B2B quote for procurement review.
