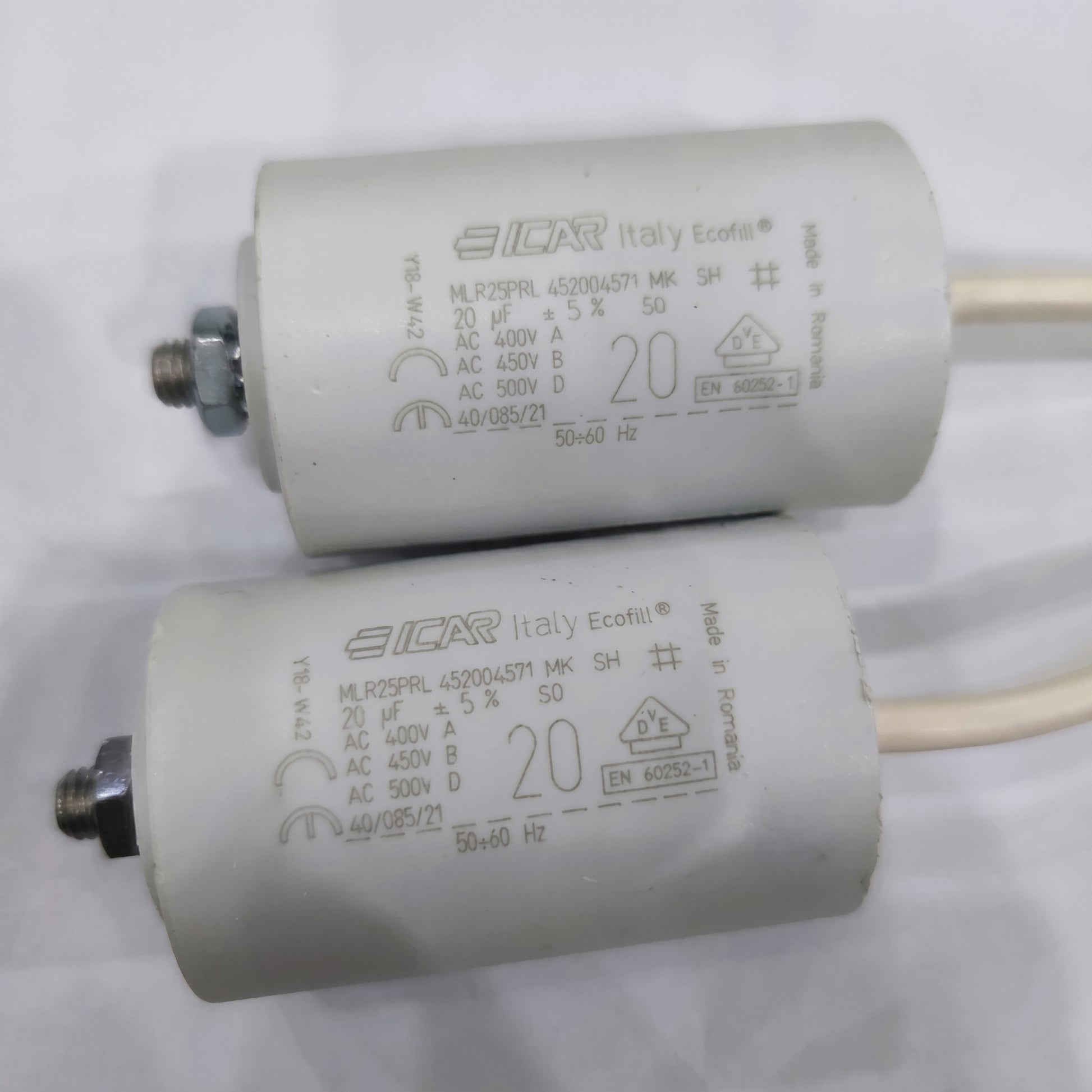

ICAR MLR25PRL452004571 Motor Run Capacitor, 20µF, 450V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ICAR MLR25PRL452004571 is an ECOFILL MLR 25 PRL series motor run capacitor for single-phase asynchronous motor and AC electrical applications. This ICAR capacitor is rated at 20 µF with ±5% Class J tolerance, 400V AC Class A life rating of 30,000 hours, 450V AC Class B life rating of 10,000 hours, and 500V AC Class D life rating of 1,000 hours.
| Product ID / MPN | MLR25PRL452004571 |
| Secondary ID | MK SH |
| Brand / Series | ICAR ECOFILL MLR 25 PRL |
| Product Category | Motor Run Capacitor |
| Capacitance | 20 µF |
| Capacitance Tolerance | ±5% Class J |
| Rated Voltage & Life, Class A | 400V AC - 30,000 h |
| Rated Voltage & Life, Class B | 450V AC - 10,000 h |
| Rated Voltage & Life, Class D | 500V AC - 1,000 h |
| Frequency | 50/60 Hz |
| Connection Type | Twin Core Cable, approximately 330 mm length, 6.0 mm OD |
| Mounting | Bottom Stud, M8 |
| Dielectric Material | Metallized Polypropylene Film |
| Housing Material | Plastic, Resin Filled |
| Safety Class | S0 |
| Dimensions | 45 mm Diameter x 71 mm Length |
This motor run capacitor is typically used in single-phase asynchronous motors, pumps, compressors, HVAC equipment, and AC motor maintenance applications where capacitance, voltage-life class, cable connection, M8 stud mounting, and housing dimensions must align with the original equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for ICAR MLR25PRL452004571 capacitors and related power and energy components. Verified specifications should be reviewed against the equipment documentation, wiring configuration, mounting requirements, and application voltage before procurement.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support. Most qualified RFQs receive a response or quote within 12 hours.
